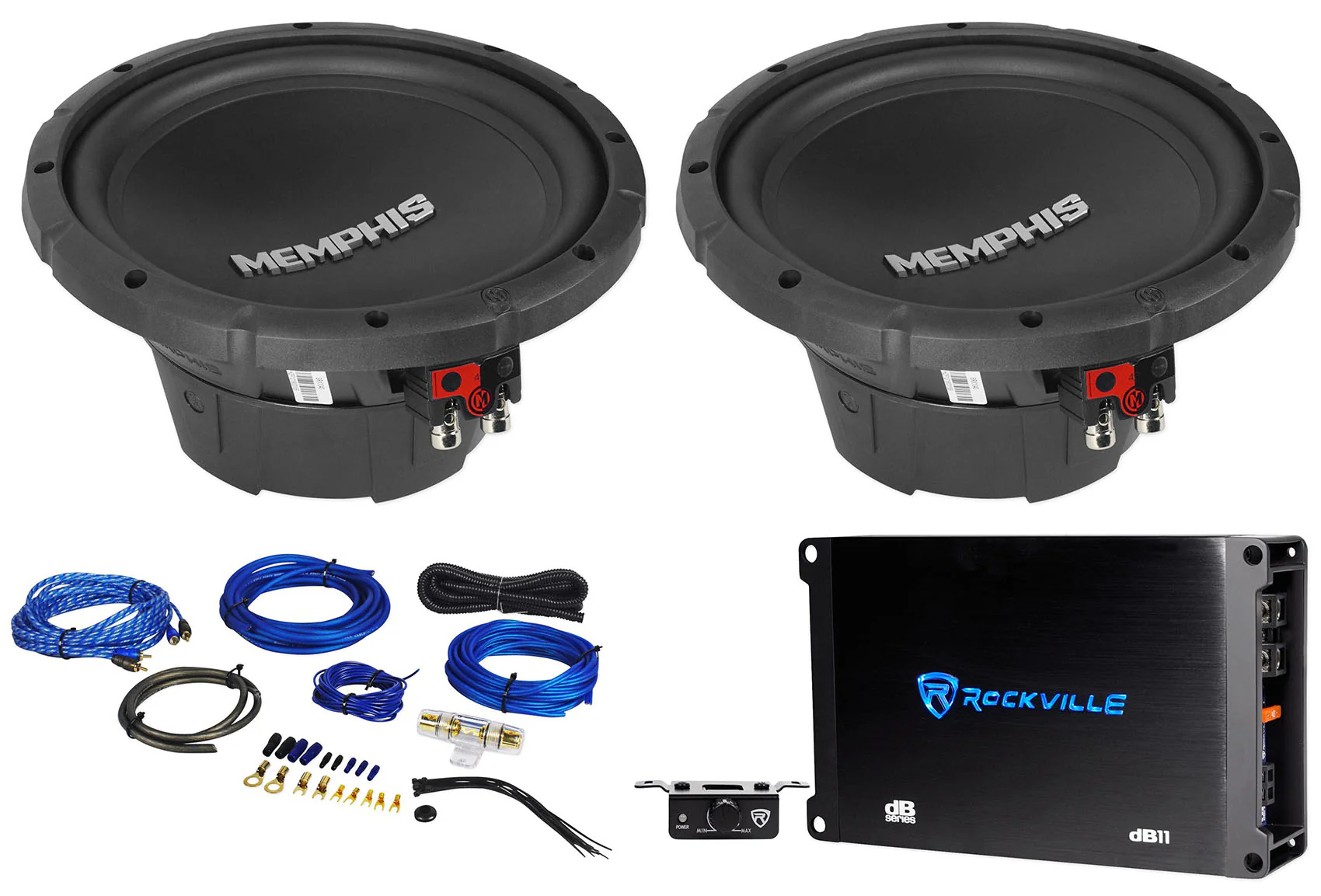

Package Includes:

• (2) Memphis Audio SRX1040 10" SRX Car Subwoofer Audio Sub 400w Peak / 200w RMS 4 Ohm
• (1) Rockville dB11 1400 Watt Peak/350 Watt RMS Mono 2-Ohm Amplifier Car Amp and Bass Remote
• (1) Rockville RWK81 8 Gauge Complete Amp Installation Wire Kit with 100% Copper RCA

---

Description of SRX1040:

Whether it’s your first system or you just need a little more bass in your trunk, the Street Reference line is the ultimate value subwoofer on the market. Redesigned from the ground up, SR subs are indistinguishable from their predecessors with improved performance, durability and cosmetics.

Features:

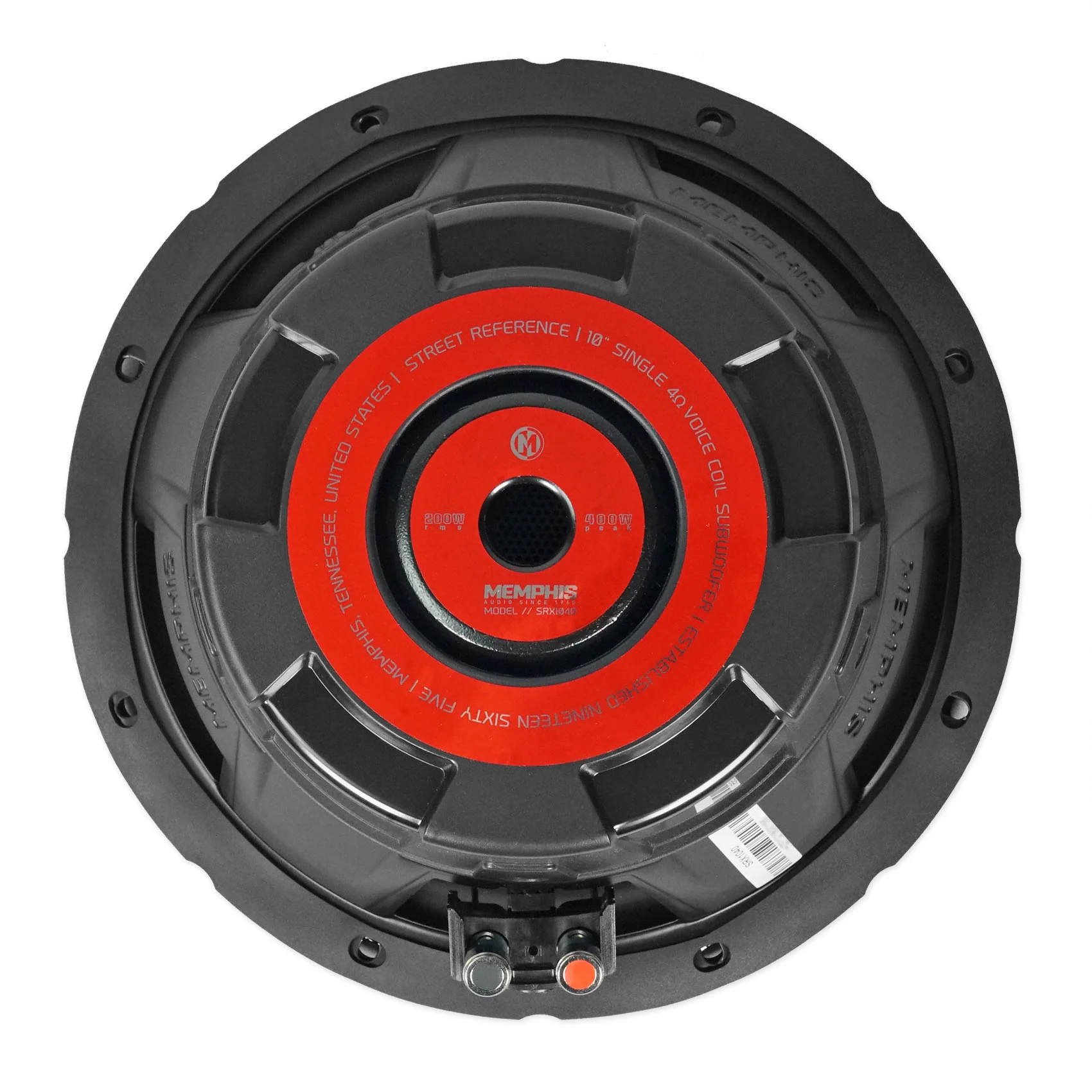

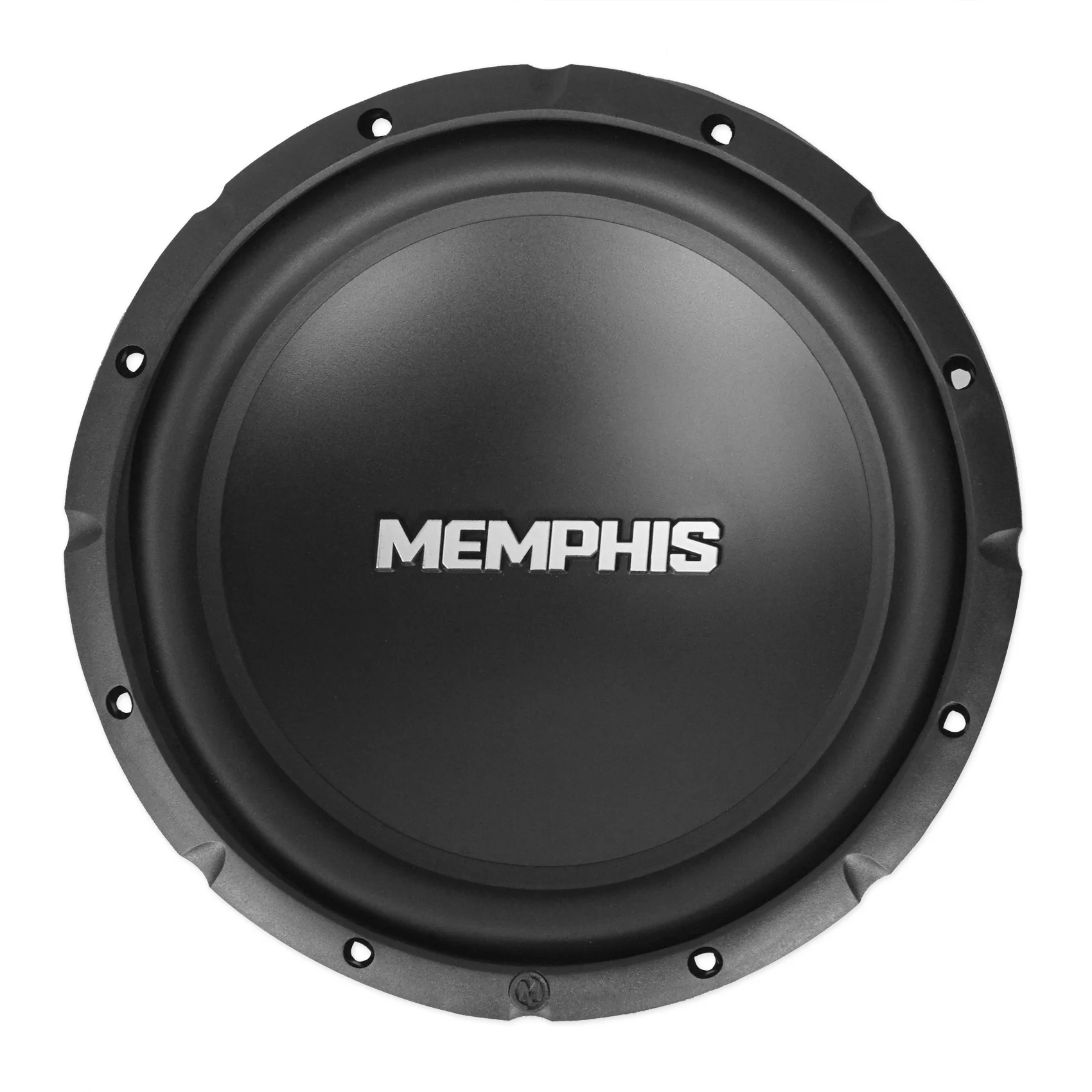

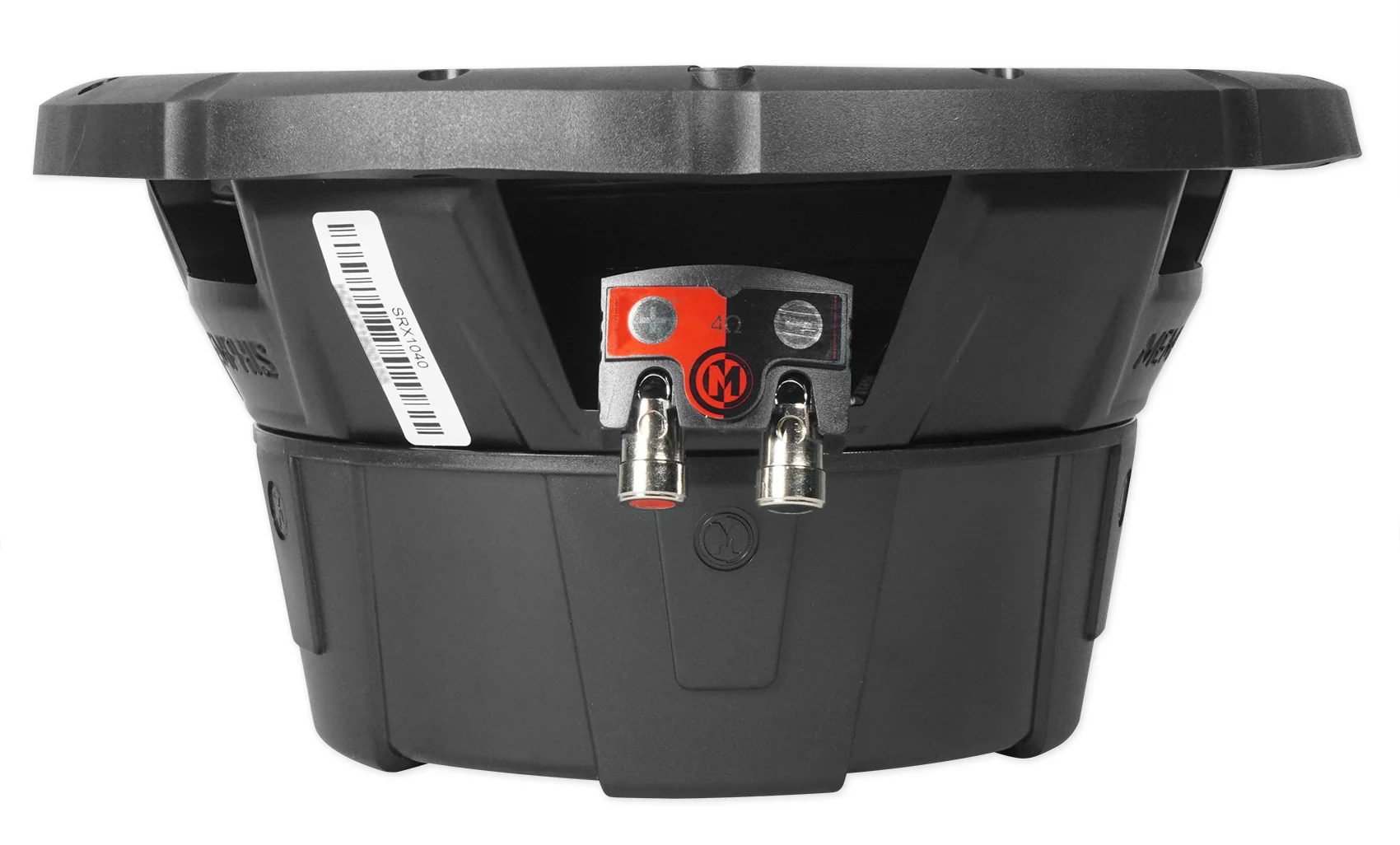

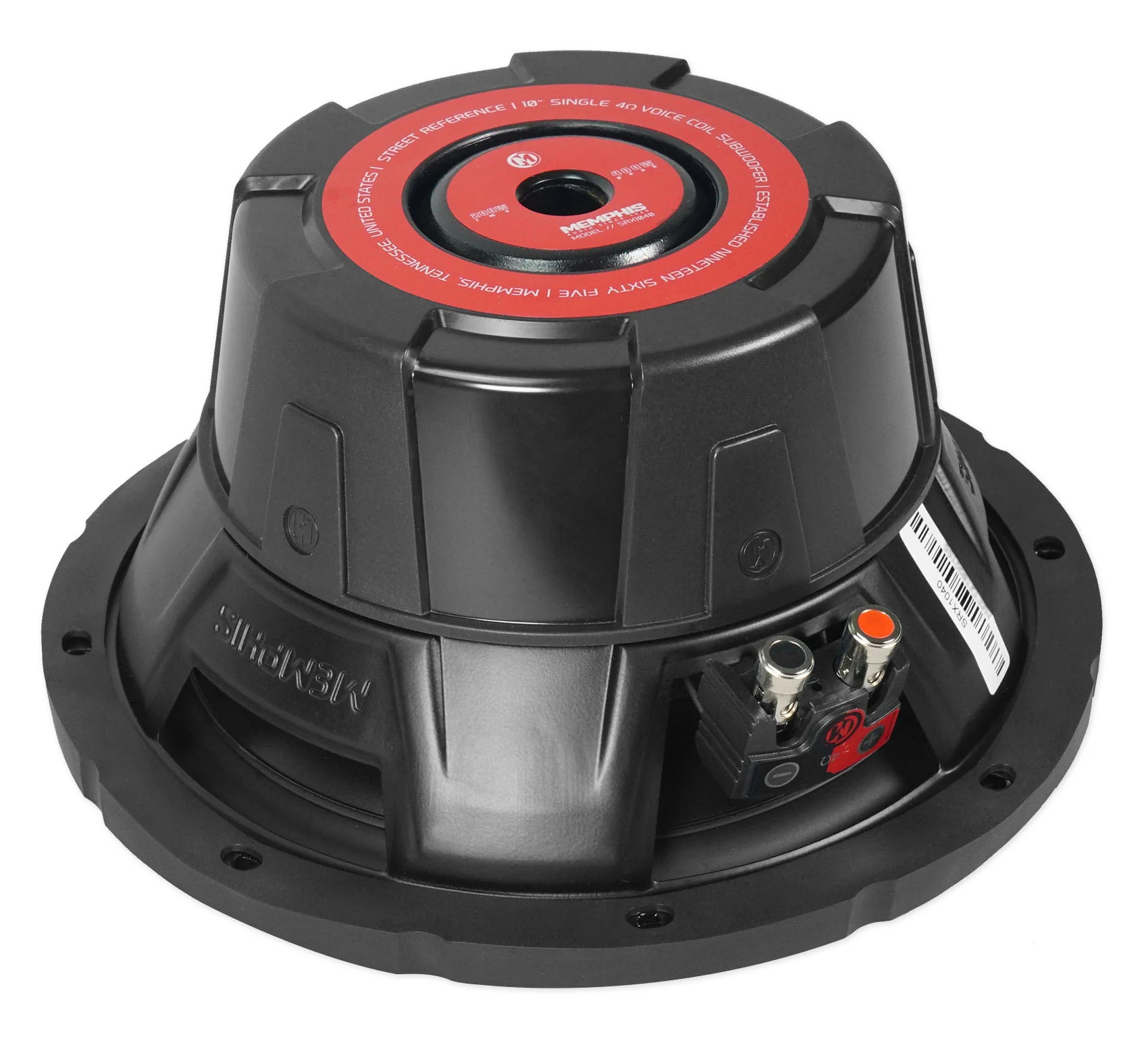

• Memphis Audio SRX1040 10" SRX Car Subwoofer Audio Sub 400w Peak / 200w RMS 4 Ohm
• 12 AWG compression terminals
• Anodized aluminum voice coil former
• Optimized for both sealed and vented enclosures
• Lightweight but rigid cone design for improved efficiency
• Polypropylene cone for improved durability
• Progressive poly cotton spider for controlled motion resulting in lower distortion
• Rubber surround for improved durability

Specifications:

• Size: 10"
• RMS Power: 200w
• Peak Power: 400w
• Voice Coil: Single
• Impedance: 4-Ohm
• Sensitivity (dB): 84
• Magnet Size (Oz): 30
• Mounting Depth (in): 4.65
• Cut Out Diameter (in): 9.06
• Voice Coil Diameter: 2"
• Warranty: 1

THIELE SMALL PARAMETERS
Resonant Frequency  (fs)	36 Hz
Mechanical Q	4.75 Qms
Electrical Q	0.88 Qes
Total Q	0.742 Qts
Sensitivity	84.8 dB
Xmax Linear	0.24 in.
Xmax Mechanical	0.8 in.
Displacement	0.07 cf.
Air volume of suspension (Vas)	1.08 cf.
Moving Mass (Mms)	120.6 g
Suspension Compliance (Cms)	0.165 mmN
Effective piston area (Sd)	363.03 SqCm
Motor Strength (Bl)	9.94 TM
VOICE COIL & MAGNET
Impedance Series	4 ohms
Impedance parallel	4 ohms
Voice coil diameter	2 in.
RMS Power	200 Watts
Peak Power	400 Watts
Magnet weight	30 oz
Magnet diameter	3.55 in.
PHYSICAL DIMENSIONS
Mounting depth	4.57 in.
Cutout Diameter	9.06 in.
Frame Outside Diameter	10.12 in.
ENCLOSURE RECOMMENDATIONS
Single sub sealed	1 cf.
Dual subs Sealed	2 cf.
Single sub vented	1.8 GROSS cf.
Port dimensions	10.5" x 1.5" x 14.5"L
Tuning frequency	38 Hz
Dual sub vented	3.5 GROSS cf.
Port dimensions	10.5" x 3" x 15"L
Tuning frequency	38 Hz

---

All About Your dB11:

How To Set the Gain On your Car Subwoofer Amplifier:

What's In The Box:

• (1) dB11 Amplifier
• (1) Bass Remote
• (1) Birth Sheet with Tested Power
• Owner's Manual
• Mounting Hardware
• Warranty

Features:

• Rockville dB11 1400 Watt Peak/350 Watt Dyno-Certified RMS Mono 2-Ohm Amplifier Car Amp+Bass Remote
• Dyno Certified RMS Power Ratings: (Certified Dyno Test / Less than 1 % THD) (Use these ratings when comparing with top brands such as Kicker, Rockford Fosgate, etc)
  - 2 Ohm: 350 Watts x 1 Channel <1% THD+N
  - 4 Ohm: 220 Watts x 1 Channel <1% THD+N
• Peak: (Use these ratings when comparing with the top budget brands such as Boss, Power Acoustik, etc)
  - 2 Ohm: 1400 Watts x 1 Channel
  - 4 Ohm: 880 Watts x 1 Channel
• High-Speed MOSFET Power Supply
• Optical Coupler Class "D" Technology
• Fully Adjustable 12dB / Octave Crossover with Differential Circuitry
• Low Pass Filter: 50Hz - 250Hz
• Subsonic Filter: 15Hz - 55Hz
• Phase Control
• Full IC-Controlled Protection Circuitry
• Fully Adjustable 12dB Bass Equalizer
• Mute and Delay Soft Start System
• Status Mode LED Indicator
• Minimum THD at Rated Power: <0.1%
• S / N Ratio: >90dB
• Under Voltage Protection at 10V
• Over Voltage Protection at 16V
• Frequency Response: 15Hz - 250 Hz
• Dimensions (Inches): 8.9” W  x 2” H x 5.5” D


---

Video of RWK81:

Description:

The Rockville RWK81 8 AWG (American Wire Gauge) amp kit has the following differences over other amp kits on the market at this price point.

1. Our RCA cables are 100 % copper. These are top of the line RCA cables

2. Better Resistance: The only thing that really matters with wires is the resistance rating. This is a measurement of conductivity and how much signal is loss per foot of wire. Since Rockville wires are made with around 3 times as much copper as any other wire at this price point, these wires had a much better resistance rating which means they will transfer more power to your amps than the other brands.

3. We do not cheat you on the thickness of the wire. These are standard American wire gauge thickness. This is another reason our conductivity is better than anything else at this price point. Other brands in the market place write 8 gauge, but cheat you on the thickness. We are honest about the thickness.

4. The Rockville amplifier installation kits feature a new soft abrasion proof insulating jacket. This rugged PVC outer jacket allows for 100% improved flexibility over standard power cables making them extremely easy to route through your vehicles interior, and it maintains exceptional resistance to grease and oil. The PVC outer jacket can with-stand an extreme temperature range of -40 to 220 degrees F.

The RCA signal transfer cables included in this kit feature blue and silver twisted pair technology in a clear outer jacket insulation skin. Not only do the blue and silver wires look cool but they also provide superior signal transfer with maximum noise suppression. They are 100% copper to provide absolute lossless perfect signal transfer to your receiver. This technology reduces interference, so your audio signal flows clean and pure at all power levels.

This kit also includes a massive 60 Amp AGU Gold Plated Fuse, so you can be sure it will handle the all the DC power that your amp will need without even the slightest loss of current. The included 7 split loom tube provides protection for your power cable from the typically harsh environment found under the hood of your car.

Audiosavings product experts have tested this amp kit against many leading amp kits on the market and were were impressed not only by the great looks but by the quality of these Rockville installation kits as well. These kits had a lower resistance rating than the other brands we compared and tested them against. What this means is that Rockville manufactures their kits with more copper than other kits at this price point, ultimately providing your amplifiers with better and cleaner DC power, so they work cooler and more efficiently. You will hear the difference a Rockville installation kit will make!

One other last thing worth noting about our kit compared to others. Our kit cosmetically looks the best. It has blue power wire, clear ground wire, and twisted pair RCAs with matching colors.  This model includes (2) sets of RCA cables.

Features:

• Rockville RWK81 8 Gauge 2 Channel Car Amplifier Wiring Installation Kit

• (1) 17’ High Grade Twisted Pair of 100% Copper RCA Cable

• 17’ 8 Gauge Translucent Blue Super Flex Power Cables

• 17’ 18 Gauge Blue Remote Cable

• 17' 16 Gauge Translucent Blue SuperFlex Speaker Wire

• 3' 8 Gauge Translucent Black SuperFlex Ground Wire

• Gold Plated AGU Heat Resistant Fuse Holder

• 60 Amp AGU Gold Plated Fuse

• 7’ Split Tube Loom

• Accessories Included: Wire Ties, Ring Terminals, Butt Connectors, Spades, and Grommets

• Soft abrasion proof insulating jacket allows for 100% improved flexibility

• PVC outer jacket can with-stand an extreme temperature range of -40 to 220 degrees F
