Video of RT5:

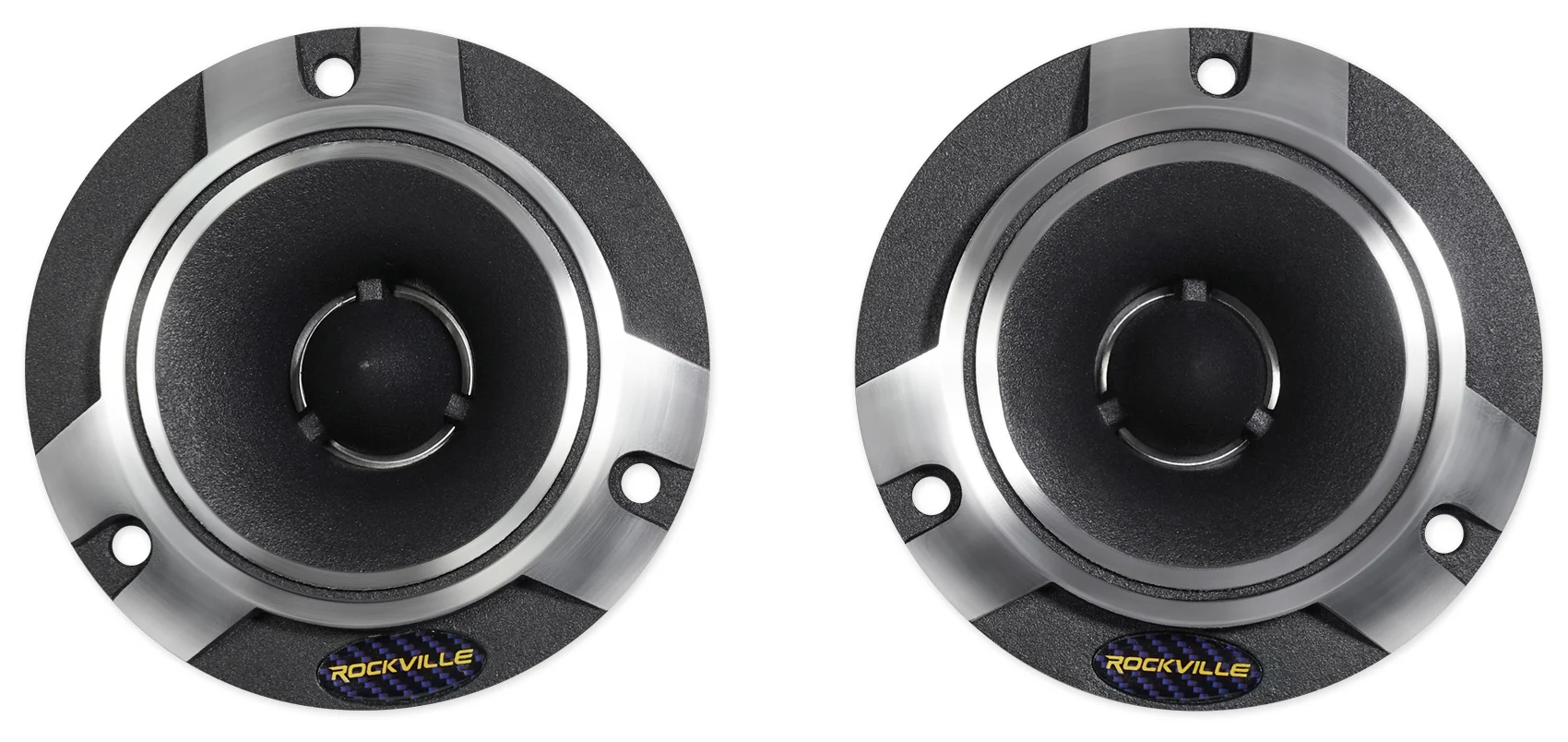

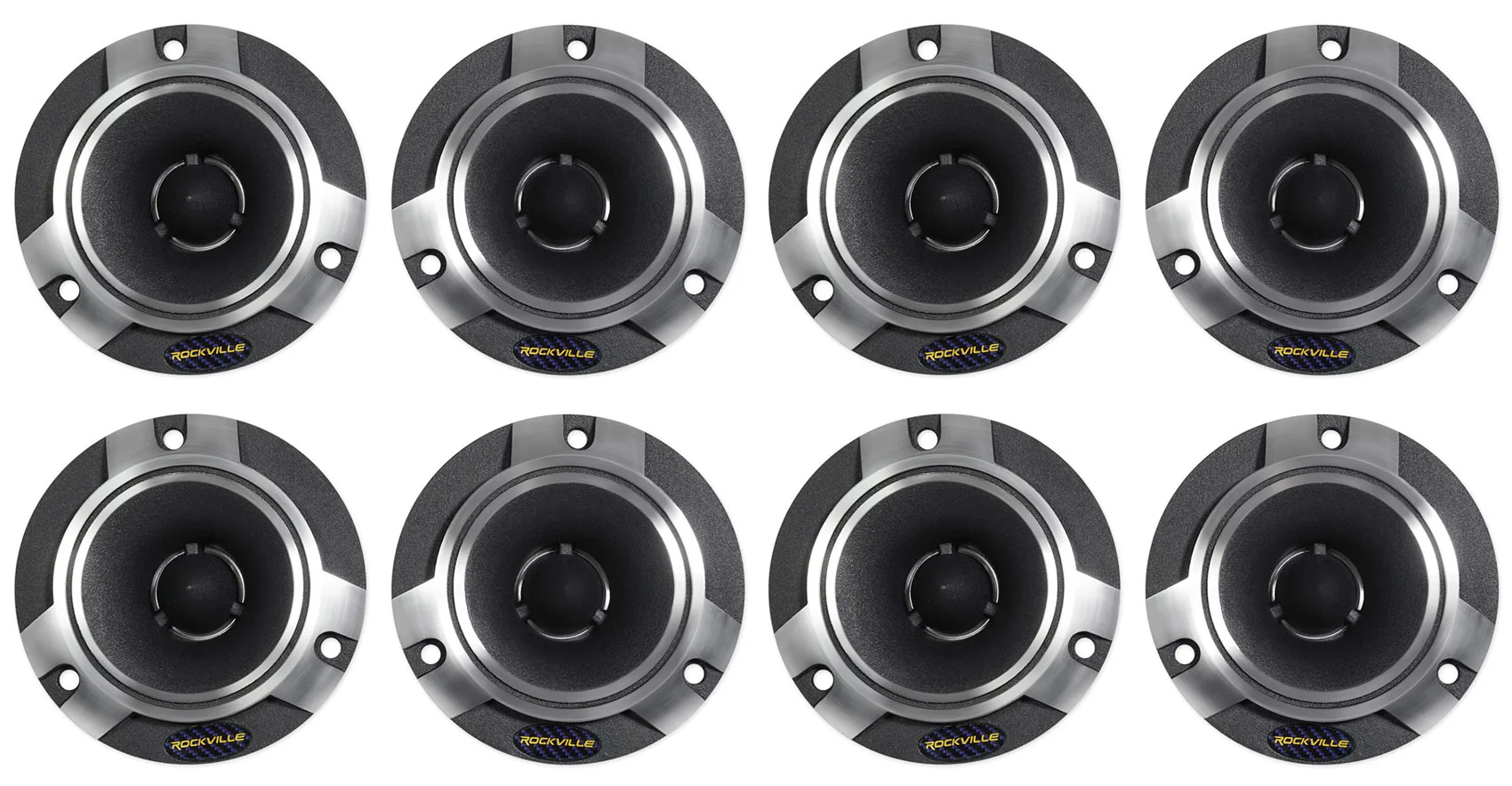

Price is for (4) Pairs of Rockville RT5 2.8" Aluminum Car/Pro Tweeters w Titanium Diaphragm+Kapton VC

What's In The Box:

• (2) RT5 Tweeters
• Pre-Installed Mounting Screws
• Mounting Screws and Hardware
• Warranty Card
• Owner's Manual

Features:

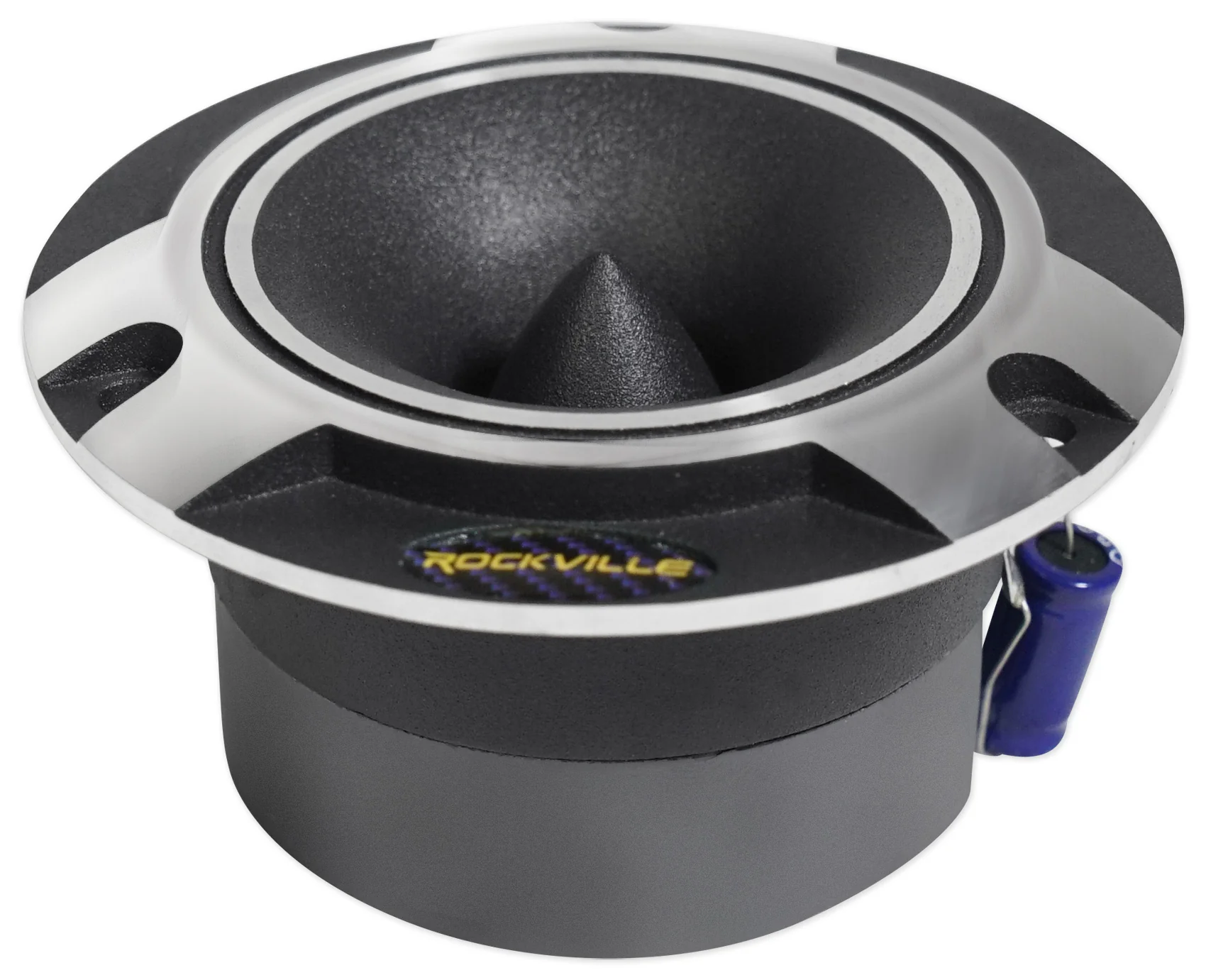

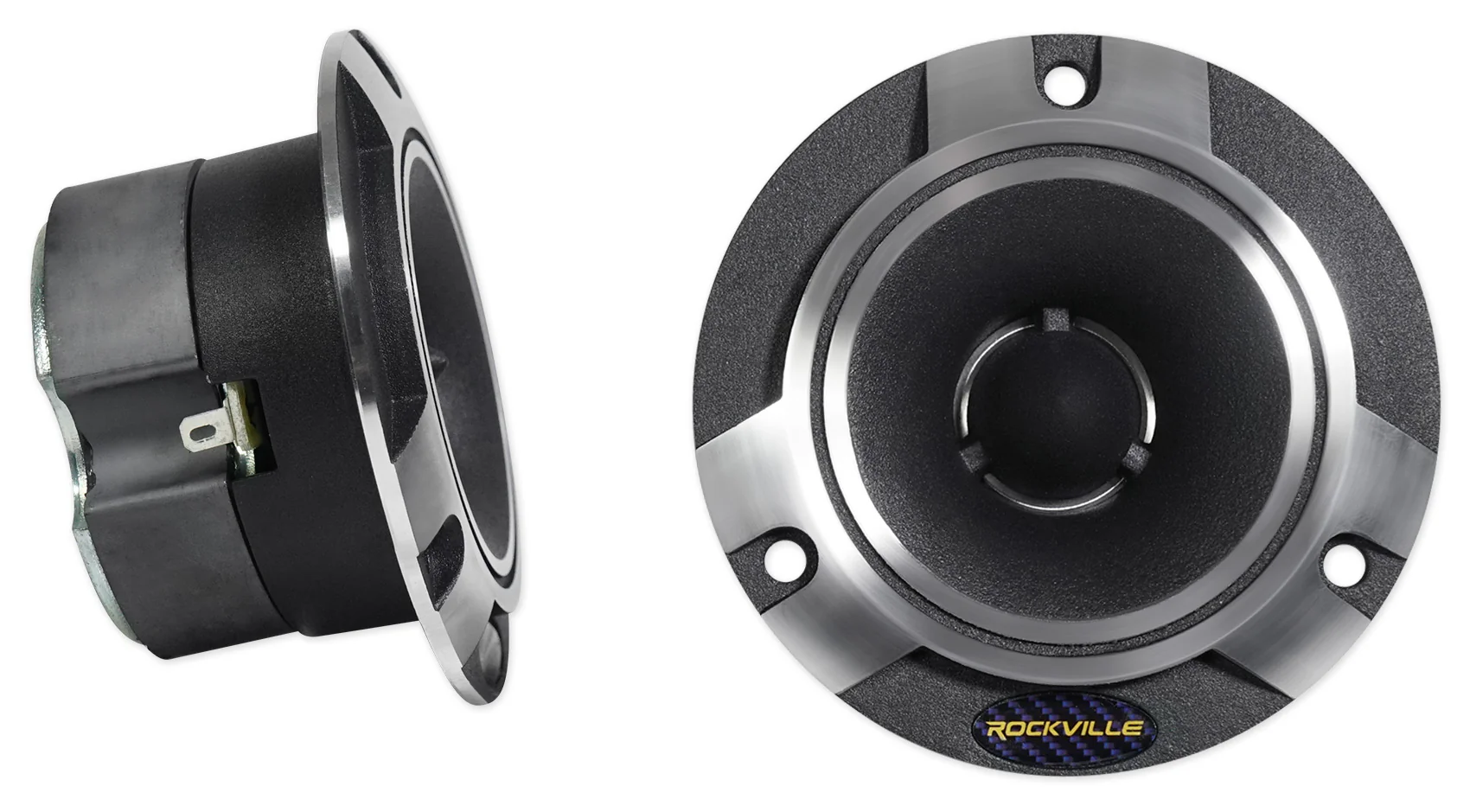

• Pair Rockville RT5 2.8" Aluminum Car/Pro Tweeters with Titanium Diaphragm and Kapton VC
• 1” High Temperature Die Cast Kapton Voice Coil
• Extremely loud and clear highs with an amazing frequency response that can even play some mids
• Ferro Fluid Enhanced Voice Coil Cooling
• Shallow Mounting Depth
• 10oz. Magnet
• Includes Mounting Hardware
• Impedance: 4 Ohm
• Cutout Diameter: 2.8”

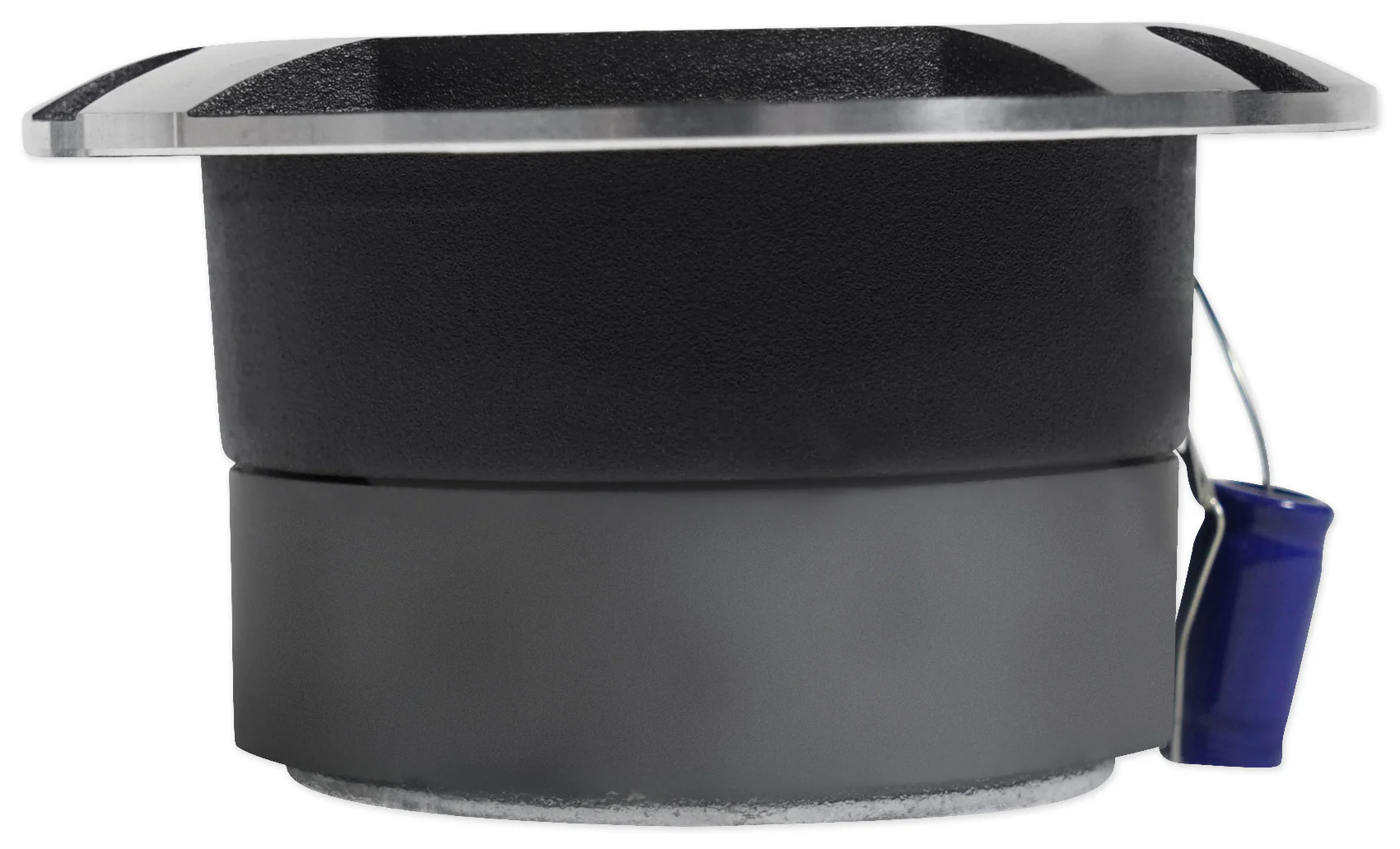

• Mounting Depth: 1.66”
• Frequency Response: 2kHz - 20kHz
• Sensitivity: 96dB @ 1w / 1m

TS Parameters:

• Fo : 2.041kHZ
• Re : 3.6 OHM
• Qes : 11.995
• Qts : 2.74
• Qms : 3.551
• Krm : 11.224u Ohm
• Erm : 1.034
• Kxm : 1.531mH
• Exm : 0.592

Simple and quick tweeter installation:

1. Choose mounting location, typically rear deck or door panel.
2. With the provided template cut a hole 2.8" in diameter make sure that you have a minimum of 1.66" mounting depth.
3. Using the included hardware, screw the tweeter into your mounting location
