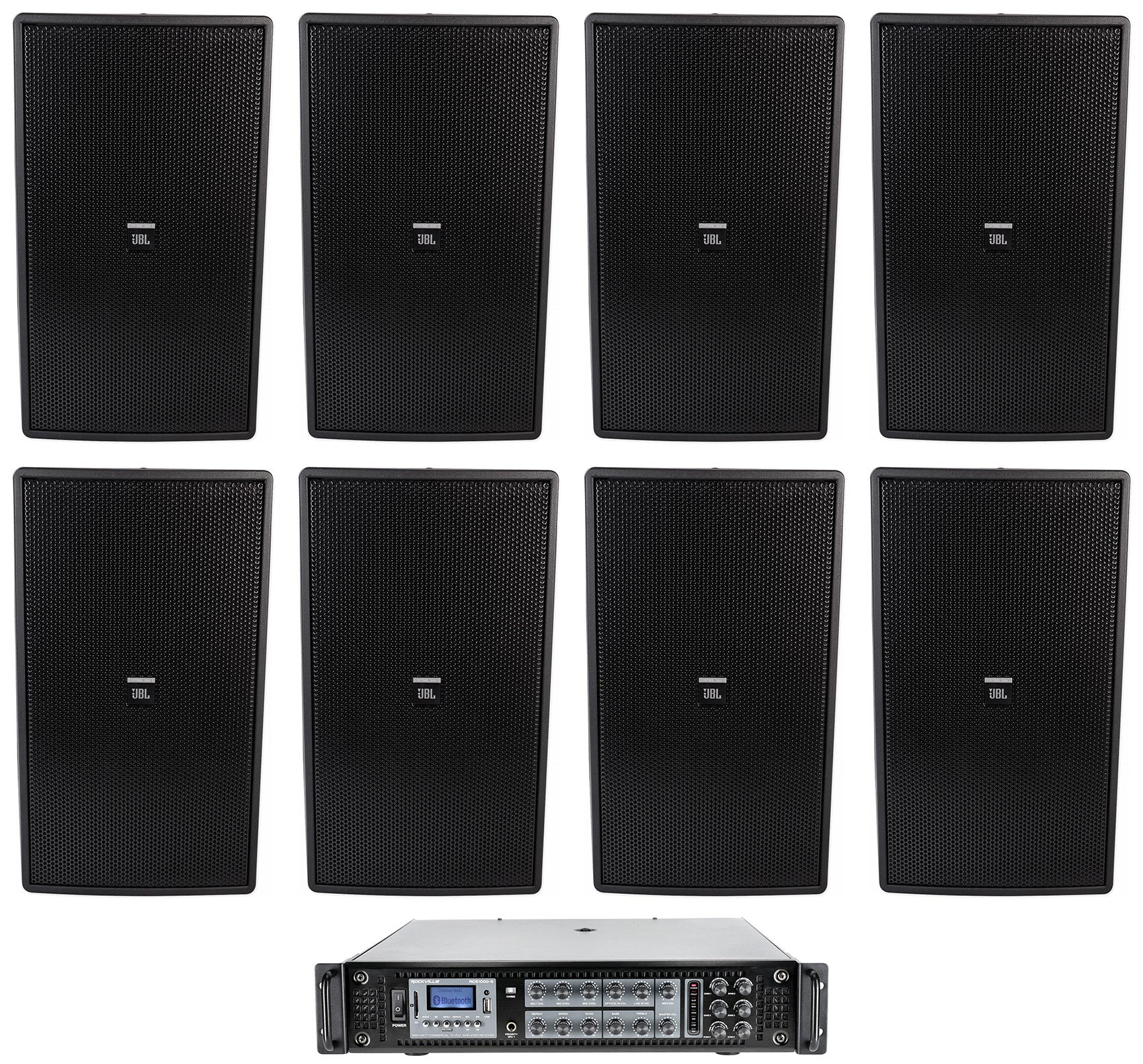

Package Includes:

• (8) JBL Control 29AV 8" Indoor/Outdoor Commercial 70v Speaker 4 Restaurant/Bar/Cafe
• (1) Rockville RCS1000-6 1000W 6 Zone 70v Commercial/Restaurant Amplifier/Bluetooth

---

All About Your 70 Volt:

Description:

The Control 29AV loudspeaker from JBL Professional fills a market need for a full range speaker, larger than other JBL Control Contractor speakers, yet more compact than the JBL Marquis Series speakers. The two-way Control 29AV speaker has an 8" woofer with kevlar cone for weather resistance and a 1-inch exit compression driver mounted onto a rotatable high-frequency horn, which allows use of the speaker in either vertical or horizontal orientation.

A low-distortion 110 degree by 85 degree rotatable horn provides smooth and even coverage, while the extremely flat frequency response allows for outstanding sonic character throughout the listening area. Sonic integrity is further assured due to the sophisticated crossover network with steep slopes and impedance compensating circuitry. The Control 29AV comes with a top-quality line distribution transformer, designed for minimal insertion loss and reduced saturation, which allows use on 70V, 100V or standard the 8 ohm thru operation. JBL's exclusive SonicGuard™ overload protection, which is virtually inaudible to the listener, ensures reliability while providing full fidelity sound. A degree of magnetic shielding allows use of the speaker close to video monitors.

Each Control 29AV is shipped with JBL's patented InvisiBall® mounting system. InvisiBall is simple to install, aims easily and provides a high degree of theft deterrence. The optional MTC-29UB U-bracket provides an alternative compact installation method and is particularly useful for low profile underbalcony applications. In addition, ten suspension points are provided for suspending the speaker or using a speaker stand adapter.

The Control 29AV has been designed for indoor or outdoor use. The woofer's cone is made of kevlar, the surround is pure butyl rubber, and the driver is rear loaded onto the baffle to minimize direct basket exposure to the elements. The compression driver's diaphragm is pure titanium. The grille is coated in polyethylene and comes with foam backing to minimize incursion of water. Nickel/zinc outdoor rated input terminals ensure a secure input connection, and an MTC-PC2 sealed-entrance cover is included to further protect terminals.

Features:

• Extended bandwidth, extremely smooth frequency response.
• 110° x 85° HF coverage, rotatable horn.
• 110 W transformer for 70 V or 100 V lines, with 8 ohm thru.
• SonicGuard™ overload protection.
• 200 mm (8 in) Kevlar cone woofer,
• 25 mm (1 in) titanium diaphragm compression driver.
• Includes InvisiBall™ mounting hardware, plus ten 6 mm attachment points for suspension and
• optional U-bracket.
• Sealed input panel cover and screwdown input terminals.

Specifications:

• Frequency Range: 37 Hz –18 kHz (-10 dB)
• Power Capacity: 300 W Continuous Program Power; 150 W Continuous Pink Noise
• Transformer Taps 70 V: 110 W, 55 W, 28 W & 14 W 100 V: 110 W, 55 W, & 28 W,
• Thru Position: 8 ohms nominal
• Frequency Response: 45 Hz – 18 kHz ( ± 3 dB)
• Maximum SPL @ 1m Short-Term: 120 dB; Long-Term: 114 dB
• Nominal Sensitivity: 90 dB (2.83V / 1m)
• Nominal Coverage Angle: 110° H x 85° V, rotatable
• Directivity Factor (Q): 7.2 dB, averaged 500 Hz to 16 kHz
• Directivity Index (DI): 8.6 dB, averaged 500 Hz to 16 kHz
• Nominal Impedance: 8 ohms
• Minimum Impedance: 6.3 ohms @ 230 Hz
• Crossover Network: 3rd order High Pass, 2nd order Low Pass with impedance compensation, 2.5 kHz crossover frequency
• Low Frequency: 200 (8 in) kevlar cone with pure butyl rubber surround, 50 mm (2 in) voicecoil on fiberglass former
• High Frequency: 25 mm (1 in) compression driver, pure titanium diaphragm with patented JBL diamond surround
• Enclosure Material: High impact polystyrene
• Grille: Thermoset composite coated steel, WeatherMax multi-layer foam
• Overload Protection: Full-range power limiting to protect network and transducers. Serviceable internal fuse to protect during exceptional overload conditions.
• Environmental: IEC 529 IP-X5 rating. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. Passes Mil-Std-202F for salt spray.
• Terminations: Screw-down terminal strip, zinc plated copper base, nickel plated metal screws/washers. Accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10 lug), plus bare wire (up to 12 AWG/2.5 mm2).
• Safety Agency Rating: Transformer is listed per UL1876
• Colors: Black or white (-WH)
• Dimensions (H x W x D): 520 x 306 x 277 mm (20.5 x 12.0 x 10.9 in.)
• Net Weight (ea): 12.2 kg (26.8 lb.)
• Shipping Weight (ea): 14.0 kg (30.8 lb.)
• Included Accessories: 1 pc MTC-PC2 input panel cover, InvisiBall mounting base, 6 mm x 260 mm InvisiBall Hex wrench.
• Optional Accessories: MTC-29CM to install speaker down from the ceiling MTC-29UB U-bracket

---

What's In The Box:

• Amplifier
• Remote
• Rack Mount Ears
• Power Cable
• FM Radio Antenna
• Set-up and how-to training video so you can install it yourself
• Warranty

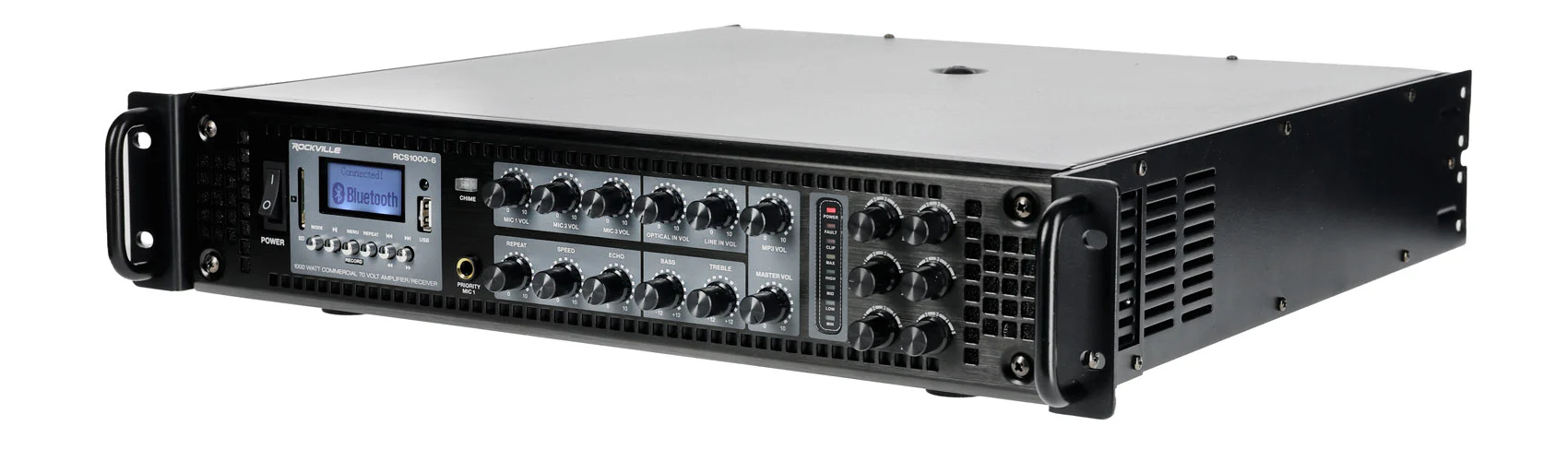

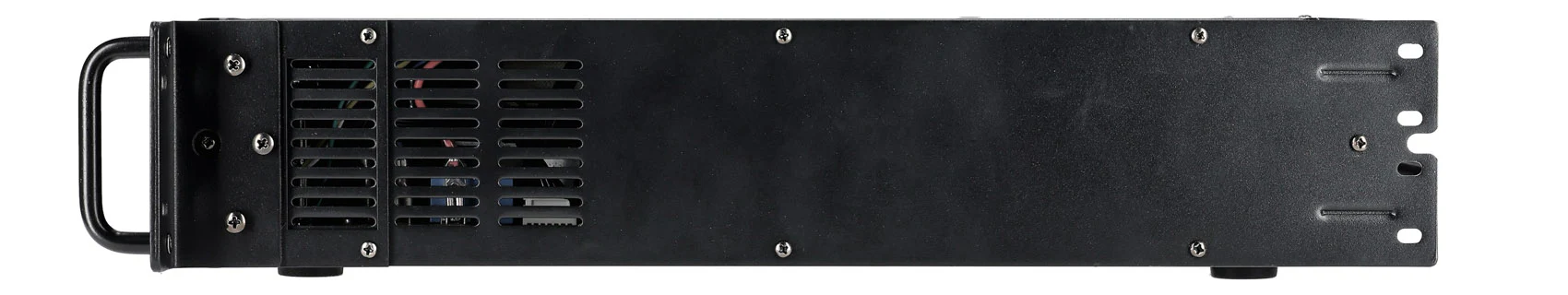

Description:

Rockville is proud to introduce our new RCS series of products. The RCS1000-6 is a 1,000 Watt 6-zone rack mountable digital hybrid amplifier/receiver. This amplifier is capable of 70 volt, 100 volt, 8-ohm, and 4-ohm applications. This makes it perfect for use in a Restaurant/Bar/Café/Lounge/School/Conference room or any other setting where many speakers are needed.

This RCS1000-6 outputs 1,000 watts at 70 volt or 100 volts and the power can be split up into 6 zones. (Most professionals recommend you not exceed 90% of the amp power, so we recommend your speakers watts not to be more than 900 in total on the taps). Each zone can output up to 300 watts and all zones should not exceed 1,000 watts. If you want all 1,000 watts into a single zone you can use the direct outputs. If you want to use multiple zones then you can use the zone outputs. For example you can have zone 1 with 300 watts, zone 2 with 300 watts, zone 3 with 200 watts, zone 4 with 50 watts, zone 6 with 50 watts. This would total 900 watts which is less than the 1,000 watts the amp can produce and its also not more than the 300 watts output each zone can produce. Wiring is totally simple as well. You just wire all the speakers in parallel from one to the next. This product will include a video URL in the box to train you how to use it.

With 3 mic inputs; each with echo control, you can use this amplifier for announcements, speeches or even Karaoke night! This model also includes a chime button so you can create a chime sound before making announcements. The RCS series features Bluetooth audio streaming so you can play your favorite music or access a playlist right from your phone! This amp also features both USB and SD inputs allowing you to play audio stored on a USB thumb drive or SD Card. There are also 2-line inputs that allow you to plug in another audio device such as an MP3 player, CD player, TV, etc. We also added an optical input so you can easily integrate a TV, projector, or other digital device.

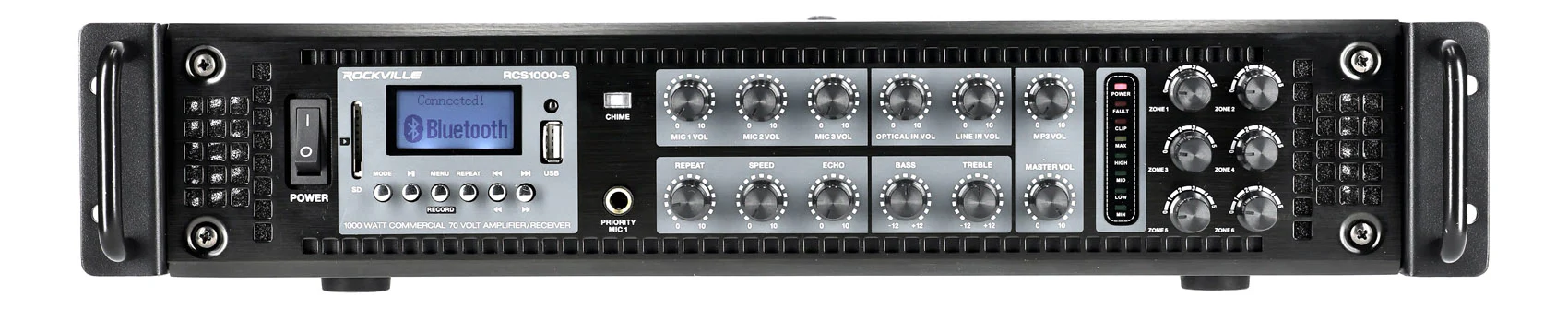

Individual volume knobs for each of the 6 zones and volume knobs for each of the 3 mic inputs gives you full control over your system. If you want a volume control in each room, then you can buy any of our wall mount 70 volt volume controllers such as our VOL70200.

The built-in clipping limiter function protects your speakers and the amp from overheating. For further protection there is also a cooling system in this amplifier that will keep the components running cool making the amplifier durable and reliable.

Our goal with the RCS series was to make it possible for anyone to install 70 volt systems on their own without spending thousands of dollars on a contractor. The RCS1000-6 makes it a breeze to connect many speakers and multiple external sources. We intentionally use common plugs like RCA and ¼" to make this amplifier more universal and user friendly. With our unique design, helpful how-to videos, and our great tech support team you can feel confident in your DIY ability when installing our commercial system!

Features:

• Rockville RCS1000-6 1000 Watt commercial/restaurant amplifier / receiver
• 19" rack mountable (removable rack brackets)
• Capable of 70 volt, 100 volt, 8 ohm, and 4 ohm
• 70/100 volt RMS Power: 1000 Watts
• 6-Zones – each zone has a separate volume control
• Operation: Master output with 1000 watts or 6 zone outputs totaling 1000 watts with a max of 300 watts per a single zone
• Built in Bluetooth audio streaming
• FM radio tuner
• USB input to play audio stored on a thumb drive (32gb max)
• SD card slot to play music stored on an SD Card (32gb max)
• Separate volume control for MIC1, MIC2, MIC3, MP3, LINE1, LINE 2, and MP3
• Echo control for the mic inputs with speed and repeat adjustments
• Built in clipping limiter to protect the amp and speakers
• Bass and Treble control
• Chime button for making announcements
• Top quality aluminum panel with industrial grade knobs
• 5 segments signal level indication
• Built in cooling system keeps component cool at all times

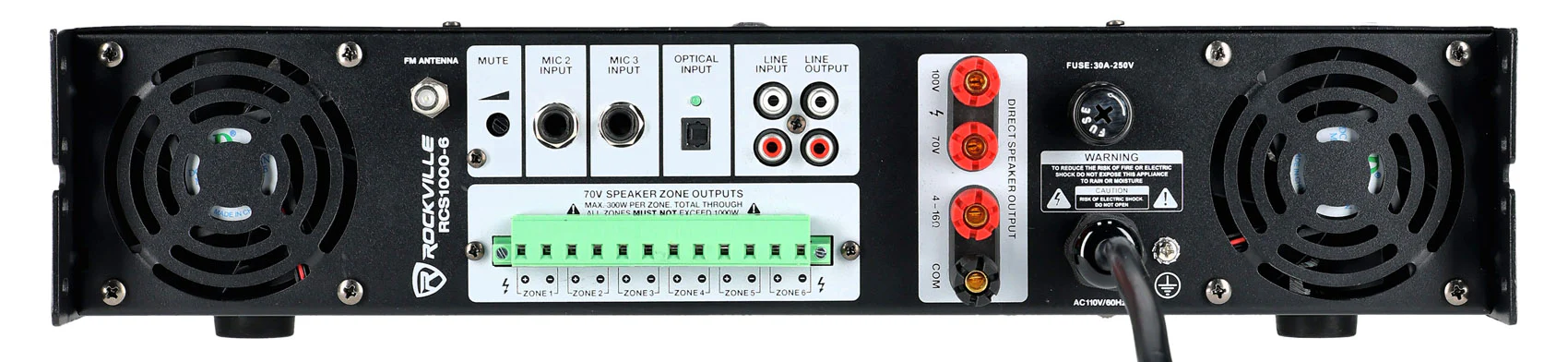

Inputs and Outputs:

• (2) Sets RCA AUX inputs
• (3) Mic inputs
• Optical Input
• RCA Line output
• 100V speaker red positive speaker output terminal
• 70V speaker red positive speaker output terminal
• 8 Ohm red positive speaker output terminal
• Shared negative speaker output terminal

Specifications:

• Power Requirements: 120V / 50-60Hz
• A Weighted Signal to Noise (@ 1W) -55.6dBA
• A Weighted Signal to Noise (referenced to full 4 ohm power) -87.3dBA
• Frequency response: 40Hz to 24.0 Khz
• Frequency Response VS THD+M (worst case across normal bandwidth 5W @ 8 Ohms: 0.17%
• Weight: 45.8 lbs
• Dimensions: 19"x18.1"x4"

What is 70 volt ?

70 volt systems are the number one choice for any application where you want to install multiple speakers. With 70 volt there are a lot of advantages over 8-ohm systems. One of the main advantages is the simplicity of the wiring as well as how easy it is to match up speakers with the amplifier. For example, with this 1,000 watt / 70 volt amplifier, you can install speakers that total around 1,000 watts. It does not matter if it is 45 speakers that are 20 watts each or 90 speakers that are tapped at 10 watts each. You always want your 70 volt amp to have at least 10% more power than the combined watts your speakers are tapped at. When we say the word tap, what we are referring to are the selectors that many speakers in 70 volt have on them. For example, some speakers might have selectable options of 1.5w, 3w, 5w, 10w. What this does is limit how many watts the built-in transformer on the speaker will allow the speaker to get from the amplifier. What this allows for is full customization of your sound for your space. In a restaurant for example you can tap your dining room speakers at 5 watts, the speakers by the bar area at 10 watts, the ones in the hallway at 3 watts and the speakers in the bathrooms at 1.5 watts. Another great feature with 70 volt is you can mix and match any 70 volt speakers whether they are ceiling speakers, wall mounted speakers, subwoofers, etc.

70 volt systems allow you to run very long lines of speaker wire without signal loss. This makes it ideal when running long speaker leads. The wiring is simple. You just wire all the positive terminals of the speakers to the positive 70 volt terminals of the amplifier. The negative terminals on the speaker simply get wired to the negative terminals on the amp. You do not have to worry about impedance. The power is constant.
If you want an easy to use feature-rich 70 volt amplifier with a ton of power and 6 zones the Rockville RCS1000-6 is your best choice!
