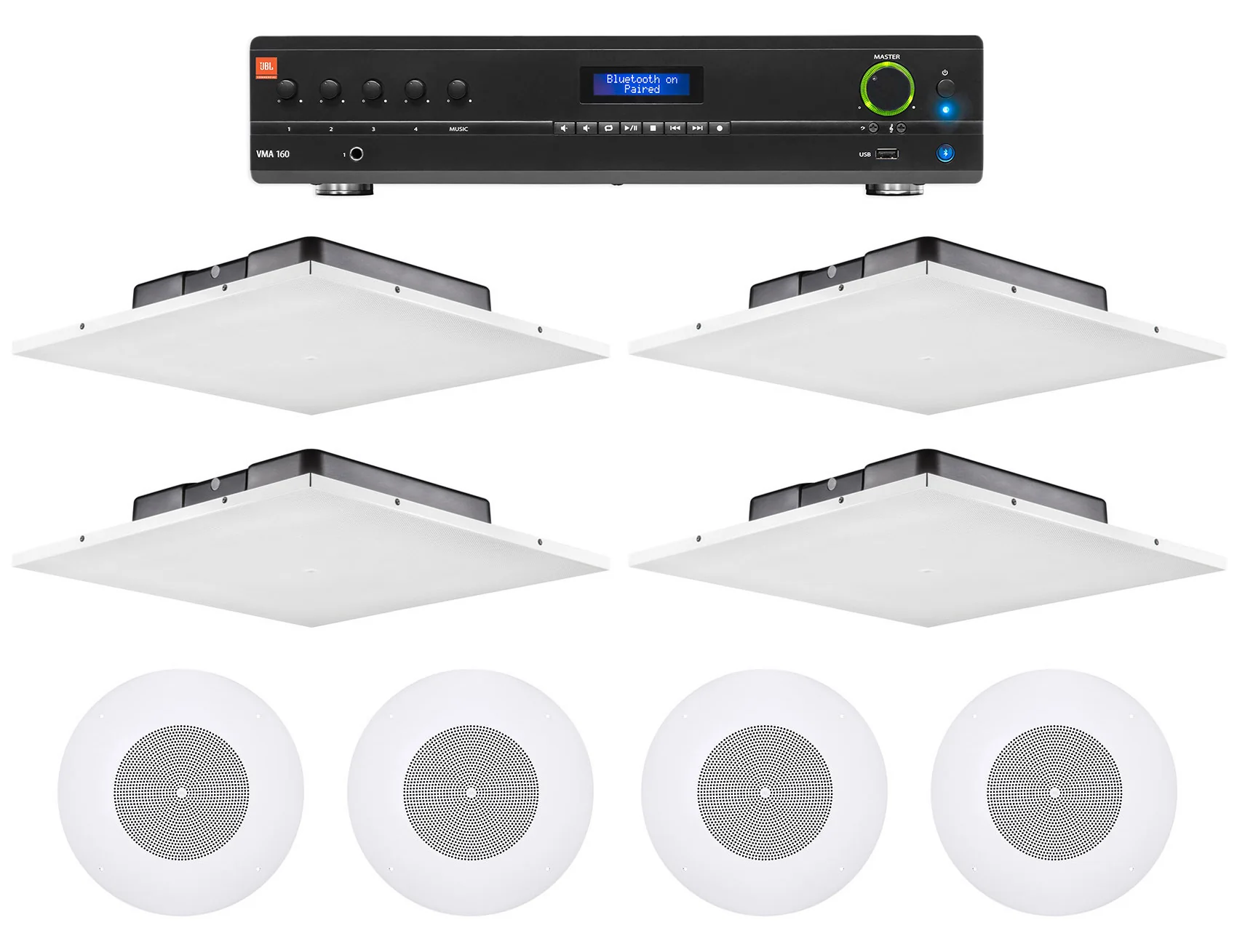

Package Includes:

• (1) JBL VMA160 60-Watt 70 Volt 70V Mixer/Amplifier with Bluetooth 5 Channel Inputs
• (2) Pair of JBL LCT 81C/T Commercial Drop Ceiling Tile Speakers For Office/Restaurant/Cafe
• (4) JBL CSS8008 8" Commercial 70V/100V 5w Ceiling Speaker 4 Restaurant/Bar/Cafe

---

Authorized JBL Dealer!

Description:

The JBL VMA Series is a cost-effective line of Mixer/Amplifiers with low impedance functionality (4O, 8O) and high impedance 70V and 100V output. They are designed with convenient and flexible features to be used by commercial integrators worldwide, ideal for emerging markets.

Features:

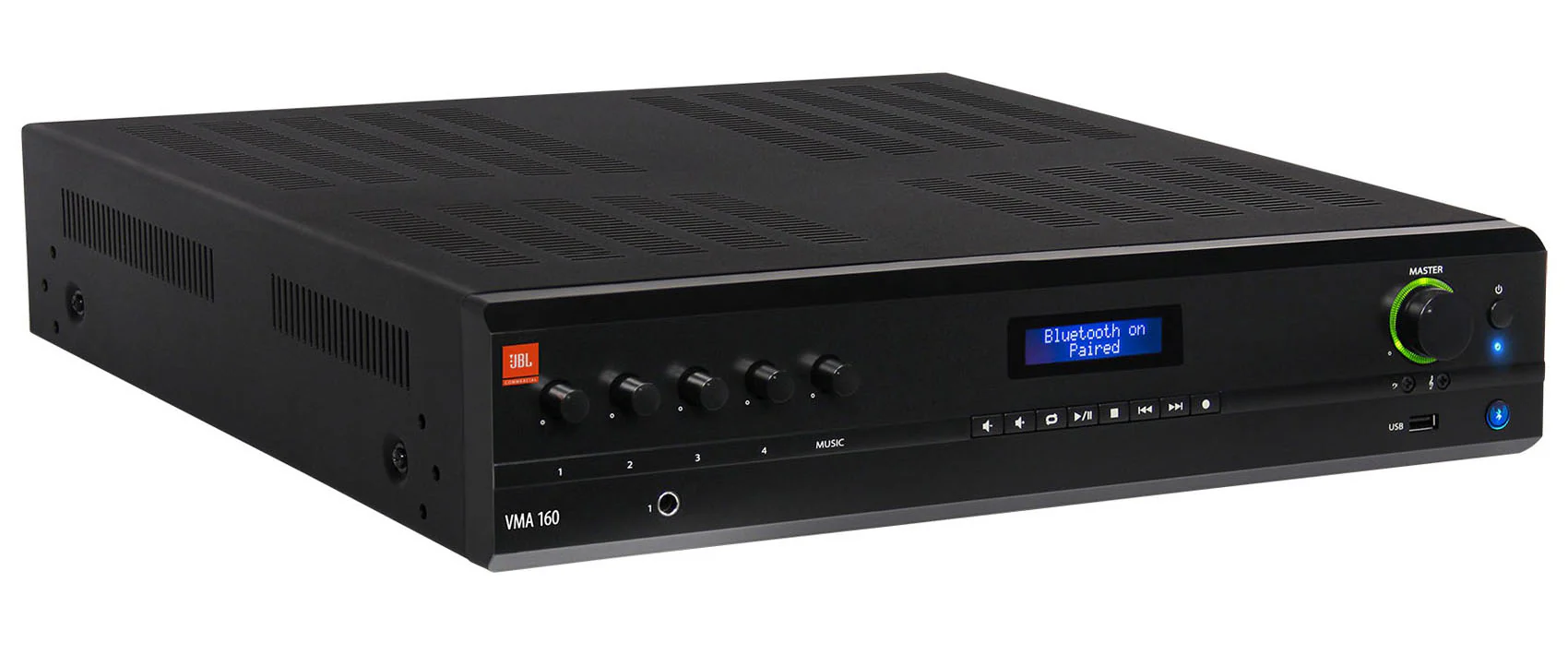

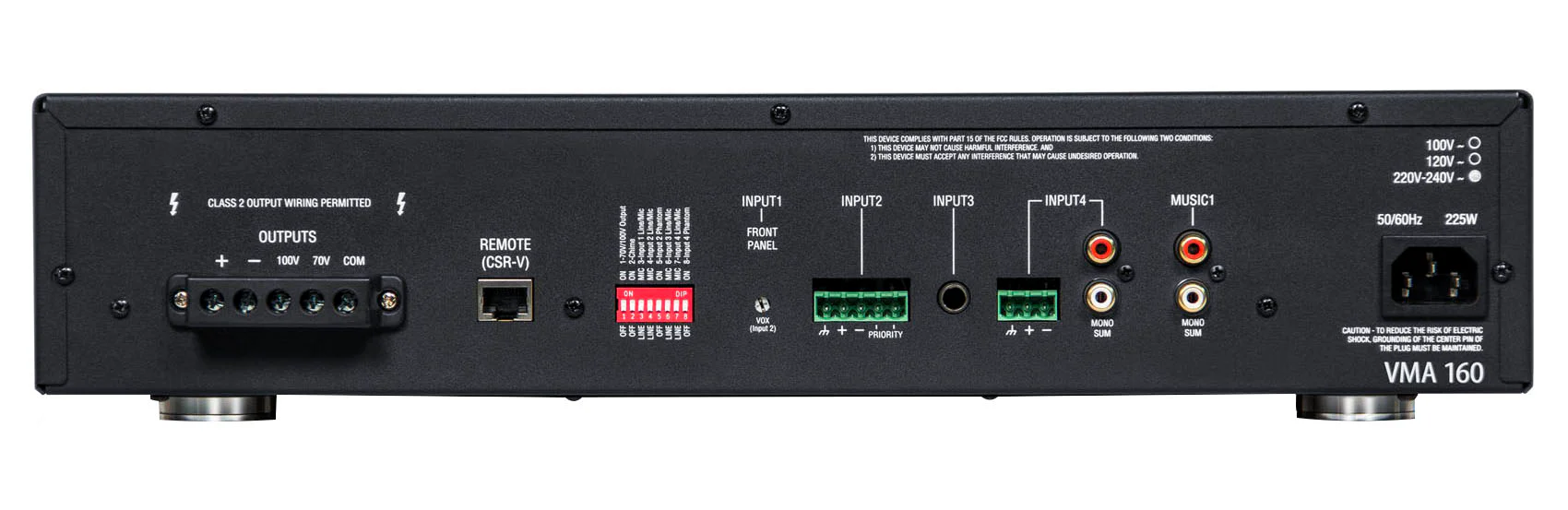

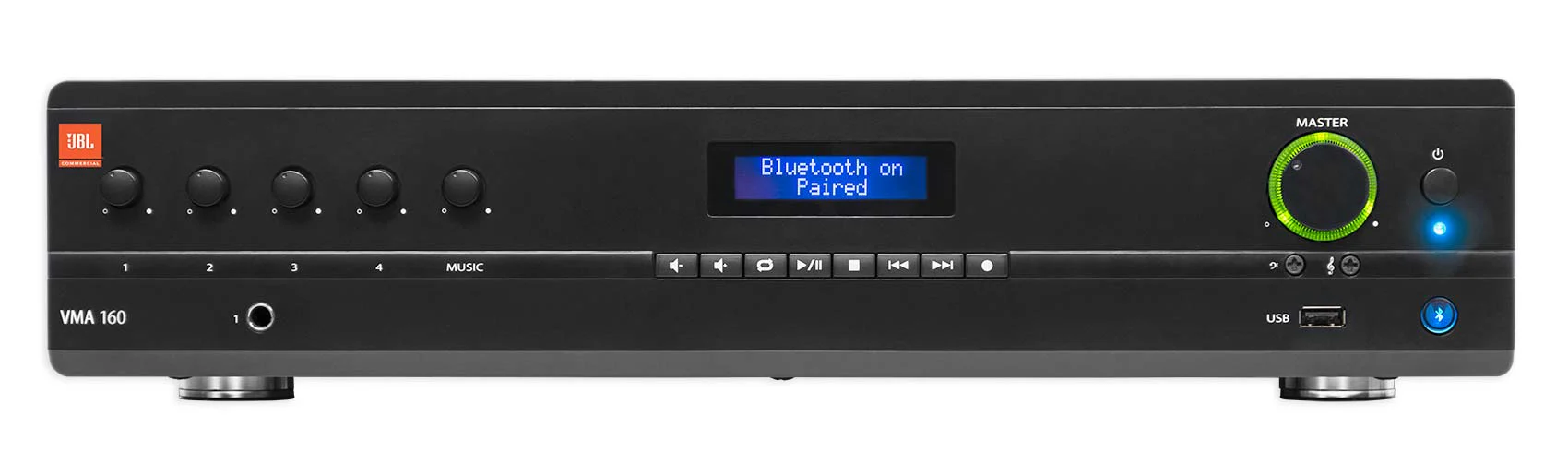

• JBL VMA160 60 Watt 70V Mixer/Amplifier with Bluetooth and 5 Channel Inputs
• Max Output Power: 60 Watts
• Frequency Response: 20 Hz - 20 kHz
• THD (Total Harmonic Distortion): <0.5%
• Signal-to-Noise Ratio: > 76 dB
• Input Impedance: Mic: 400 Ohms Line: 20 kOhms (balanced) RCA: 50 kOhms
• Phantom Power: 27VDC
• Crosstalk: -70 dB
• Nominal AC Line Voltages: 100V, 120V, 220V, 220-240V, 50/60 Hz
• Minimum Load Impedance: 4 Ohms, 80 Ohms,160 Ohms
• Insertion Loss: 1 dB Maximum
• Number of Inputs: 5
• Number of Outputs: 1
• Tone Control: Bass +/-14dB @ 50Hz; Treble +/-14dB @10kHz
• Input Sensitivity: Mic Input: 5.5mVRMS Line Input: 1.3VRMS RCA Input (stereo in): 130mVRMS
• Independent bass and treble controls for each output channel
• Paging Chime, and Priority Muting
• Rack mounting hardware included
• Product Dimensions (W x D x H): 17" x 16.3" x 3.5" inches
• Product Weight: 19.4 Lbs.

---

All About Your 70 Volt:

Description:

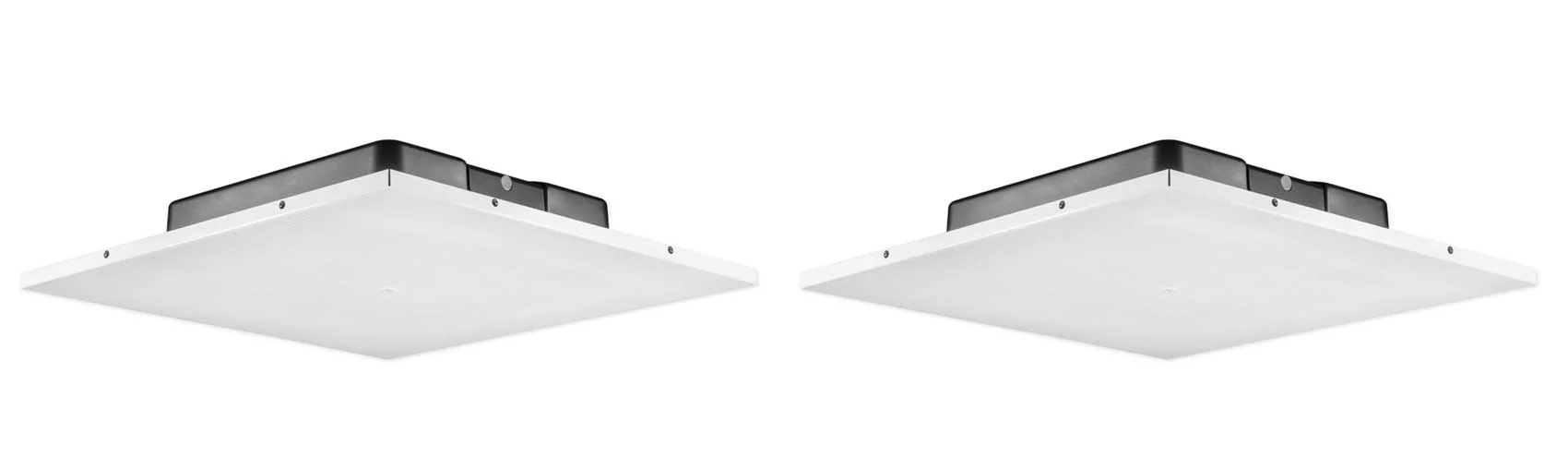

Low-Profile Lay-In 2' x 2' Ceiling Tile Loudspeaker with 200 mm (8 in) Driver
LCT 81C/T is a full-range ceiling speaker designed to lay into a 2 ft x 2 ft US-style suspended grid ceiling, with no cutting of ceiling tiles required, making for an easy and cost-effective installation with a minimum of mess. The low profile depth of only 100 mm (4 in) allows the speaker to fit in locations where deeper loudspeakers do not.

This loudspeaker is designed to provide excellent performance for paging and light-to-medium music in a wide variety of applications, including education classrooms, business music systems, retail stores, music/paging systems, airports, reception/waiting rooms, lounges, courtrooms, meeting rooms, and more.

The very high sensitivity of 96 dB provides maximum sound level, even at low tap settings. LCT 81C/T contains a 200 mm (8 in) dual-cone driver with a very high 96 dB sensitivity. The driver features a 25 mm (1 in) diameter voice coil with a Kapton coil-former and high-temperature wire for better power dissipation and long-term reliability. The speaker's built-in 10 Watt transformer provides versatility by allowing use on 100V or 70V distributed loudspeaker lines, as well as at 8 ohms (low impedance) for driving directly from a low impedance power amplifier. Adjusting is convenient via a rotary switch on the side of the rear enclosure. Two safety seismic attachment tabs are provided for securing to ceiling deck, plus 4 holes are provided -- one in each corner. The color of the perforated grille is white.

Features:

• High efficiency 200 mm (8 in) dual-cone driver.
• Easy lay-in installation into 2' x 2' US-style suspended grid ceilings. No cutting of ceiling tiles is necessary.
• Perforated metal grille included.
• Combined 70V/100V and low impedance direct operation.
• 20 Watts at 8O (low-impedance) direct setting.
• 10 Watt multi-tap at 70V/100V with taps at 10W, 5W, 2.5W (and 1.3W for 70V only)
• Very low-profile at just 103 mm (4.1 in) deep, to fit into ceilings that are shallow or that contain obstructions.
• Easy bare-wire connection in protected compartment. Wire entrance from either top or side via knock-out.
• Very high 96 dB sensitivity turns power from small amplifiers into maximum sound level for listeners.
• Designed for high speech intelligibility.
• 100° coverage pattern (conical).
• UL1480A and UL2043 certifications for use in ceiling plenum spaces.

Specifications:

• Transducer: High-efficiency 200 mm (8 inch) dual-cone driver with 25 mm (1 in) diameter voice coil, Kapton coil former, and high-temperature voice coil wire.
• Frequency Range (-10 dB): 100 Hz – 16 kHz
• Nominal Sensitivity: 96 dB
• Nominal Coverage Angle: 100° conical coverage (ave. 1 kHz - 4 kHz)
• Rated Maximum SPL: 108 dB @ 1 m (3.3 ft) average, 108 dB peak (at 8O setting)
• Nominal Impedance: 8 ohms (in Direct/Thru 8O setting)
• Transformer Taps: 10 W, 5 W, 2.5 W @ 70V or 100V (plus 1.3 W @ 70V only)
• Recommended Protective High Pass: 90 Hz high-pass (24 dB/oct) for 8O direct or any 70V or 100V tap setting
• Power Capacity (at low-Z):
• 40 Watts Continuous Program Power
• 20 Watts Continuous Pink Noise
• Input Connector: Bare wire inside protected in touch-proof wiring compartment.
• Tap Selector: Rotary switch accessible from side of backcan
• Materials: Steel rear enclosure, front baffle, and perforated grille
• Grille Color: White
• Safety Agency: Suitable for use in air handling spaces certified per UL1480A, Speakers for Commercial and Professional Use; UL2043, Standard for Fire Test for Heat and Visible Smoke Release for Discrete Products Installed in Air Handling Spaces; NFPA90 & NFPA70; S7232/UL Listed, Signaling Speaker.
• Dimensions: 607 x 607 x 103 mm (23.9 x 23.9 x 4.1 in)
• Net Weight: 7.1 kg (15.7 lbs)
• Shipping Weight: 8.3kg ea; 16.5 kg per pair-pack (18.3 lbs ea; 36.4 lbs per pair-pack)
• Ceiling Cutout Size: No cutout required. Speaker drops into ceiling grid
• Suspension / Safety-Seismic: Attachment Points Two tabs on back baffle, plus 4 holes in corners

---

All About Your 70 Volt:

Authorized JBL Dealer!

---

Description:

200 mm (8 in) Commercial Series Ceiling Speakers
JBL’s Commercial Series Ceiling Speakers provide excellent performance for paging and background music applications. High sensitivity across the product line provides maximum sound level, even at low tap settings.

Features:

• JBL CSS8008 8" Commercial 70V/100V 5 Watt Ceiling Speaker for Restaurant, Stores, etc.
• Driver Size: 200mm (8") Dual Cone
• Driver Sensitivity: 96 dB
• Frequency Range: 55 Hz - 16 kHz
• Coverage: 120°
• Driver Continuous Power Handling: 15 Watts
• 100V Taps: 5W, 2.5W, 1.3W
• 70V Taps: 5W, 2.5W, 1.3W, 0.7W
• 25V Taps: 5W, 2.5W, 1.3W, 0.7W
• Transformer Insertion Loss: 1.5 dB Maximum
• Transformer Connection: Bare Wire
• Motor Mass: 200 g (7 oz.)
• Matching CSS Backcan: CSS-BB8
• Bolt Mounting Circle to Backcan: 4 points on 11.25" diameter
• Cutout Diameter (Open-Back): 216 mm (8.5")
• Cutout Diameter (In CSS-BB Backcan): 295 mm (11.7")
• Depth (Behind Grille): 71 mm (2.8")
• Grille Diameter: 327 mm (12.9")
• Product Weight: 2.8 Lbs.
