HOW TO Set Up Your RDAC5:

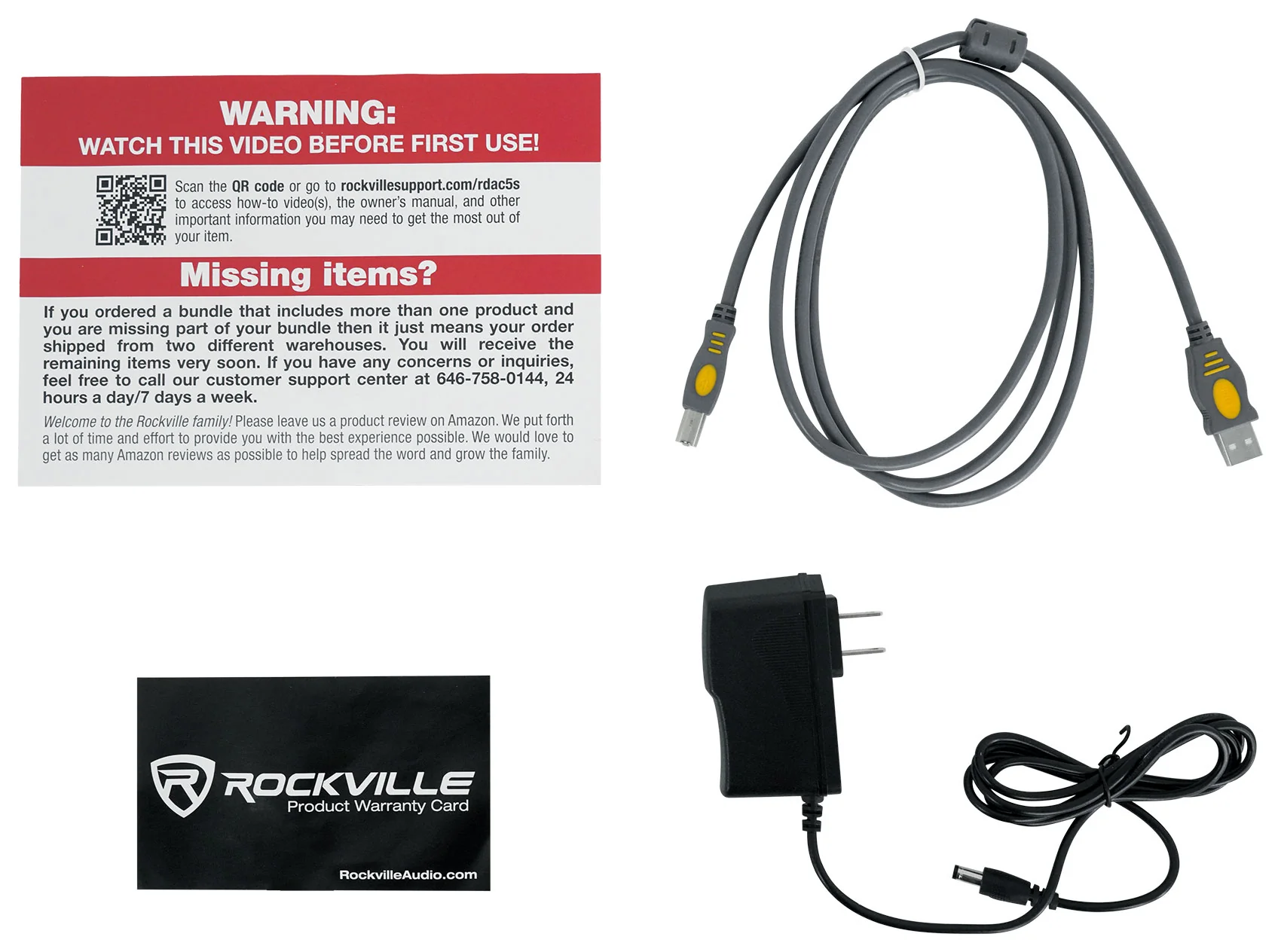

What's In The Box:

• DAC with built in headphone amplifier
• USB interface cable
• Power adapter
• How to instructional setup video
• Warranty card
• How-To instructional video

Features:

• Rockville RDAC5 DAC Digital To Analog Converter USB/Optical/RCA/Headphone Amp
• Converts digital audio to analog
• Converts computer USB playback to RCA
• Can also convert optical or Coaxial to RCA
• 24 bit / 192Khz high resolution lossless audio
• USB Audio playback

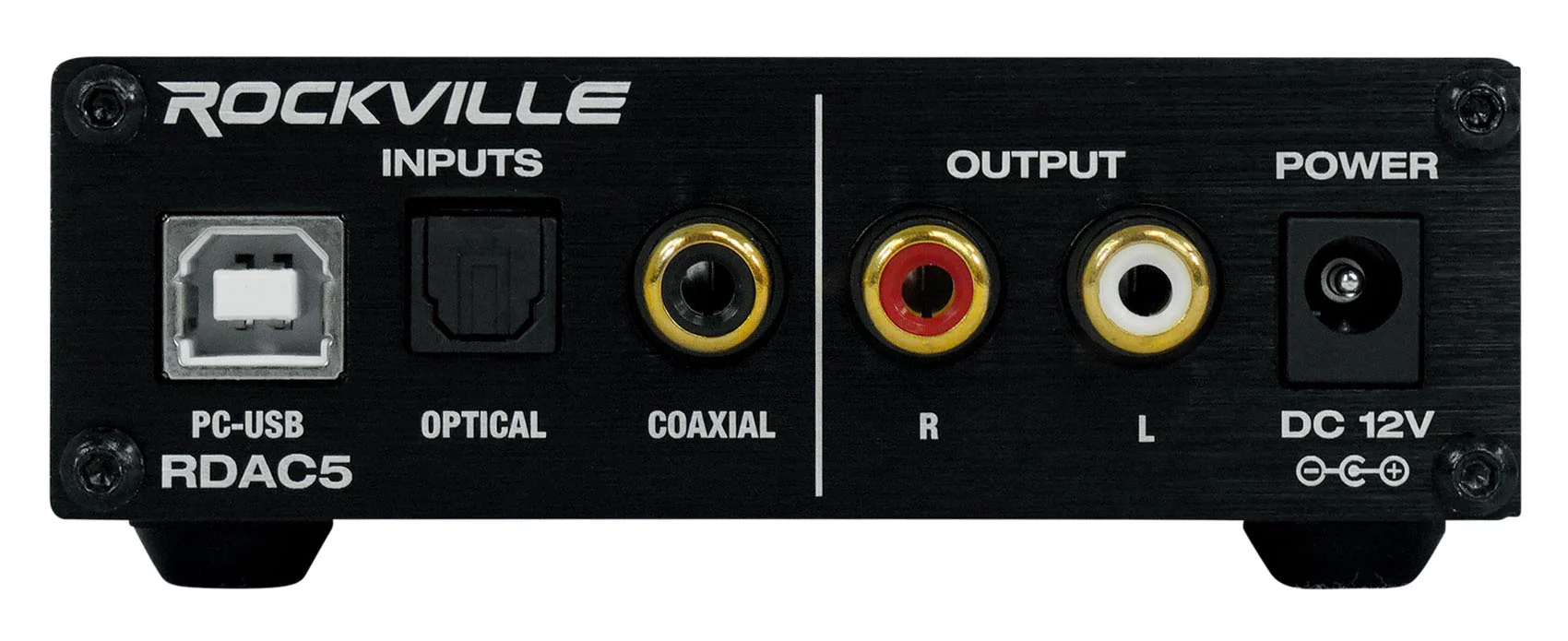

• Optical Input
• Coax input
• RCA Output
• Supports virtually all digital file formats including top quality 24-bit high resolution or lossless audio files stored on your computer
• Unique compact design
• You can connect your computer to the DAC through the included USB interface cable
• You can connect your TV to the DAC through optical
• You can connect the DAC to your receiver or amplifier or powered speakers through RCA
• Built in headphone amplifier drives high impedance headphones
• Headphone monitor volume control
• Headphone output and speaker output works simultaneously
• Plug and play into your computer (no downloads or extra drivers required) and select the bit depth and sampling frequency within your computer
• Great sound quality and performance
• Perfect for music playback, video games, or home theater systems
• Incredible Frequency Response: 5hz To 48khz (±0.1db)
• Thd @ 1khz 0dbfs: <0.0142% 24-bit
• Thd @ 1khz -10dbfs: <0.0125% 24-bit
• Thd @ 20khz 0dbfs: <0.0625%
• Signal To Noise Ratio: 106dB
• Total Correlated Jitter: <130ps
• Crosstalk @ 1khz: < -130db
• Crosstalk @ 20khz: < -112db
• Output Impedance: <50ohms
• Max. Output Level (Unbalanced RCA): 1.7v Rms
• Digital Input Word Widths Supported: 16-24bit
• Digital Input Sampling Frequencies Supported: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.400 kHz (16-bit only), 192 kHz (16-bit only)
• Max. Power Consumption: 5w
• Color: Black
• Dimensions in inches: 4.1" W x 1.8" H x 5.1" D
• Weight: 1.1 Lbs
