All About Your RVT-1:

How To Install A Car Amplifier:

How to Set Up your Car Amplifier:

How to Improve your Car Audio Electrical System:

Features:

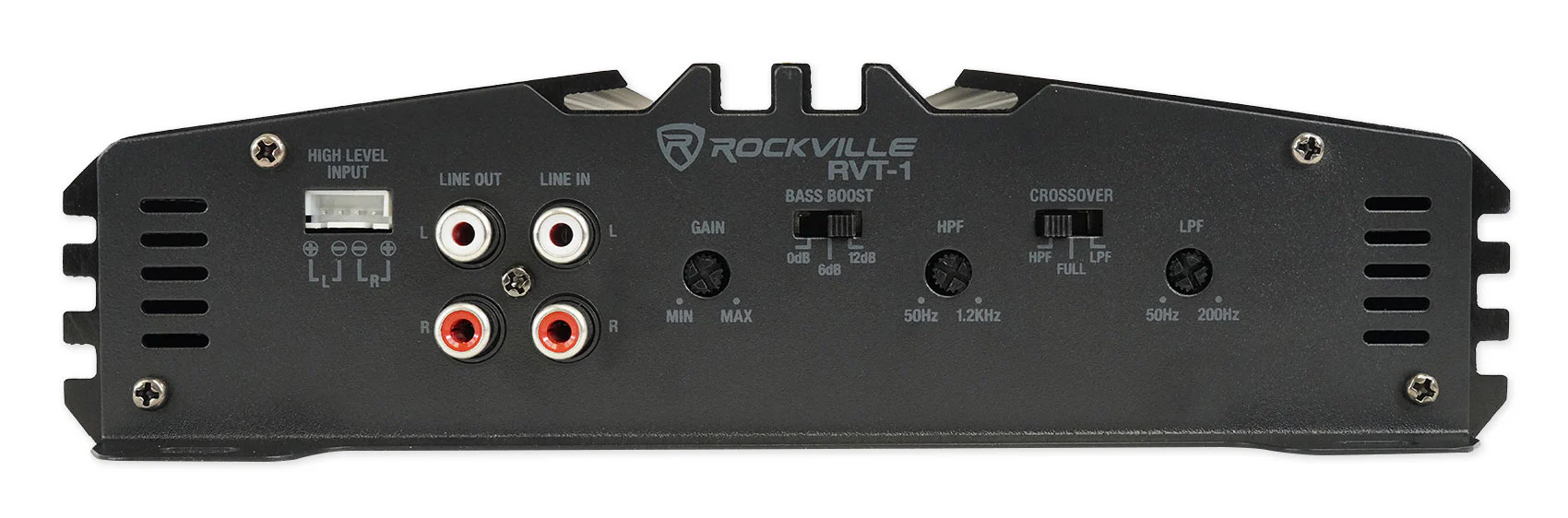

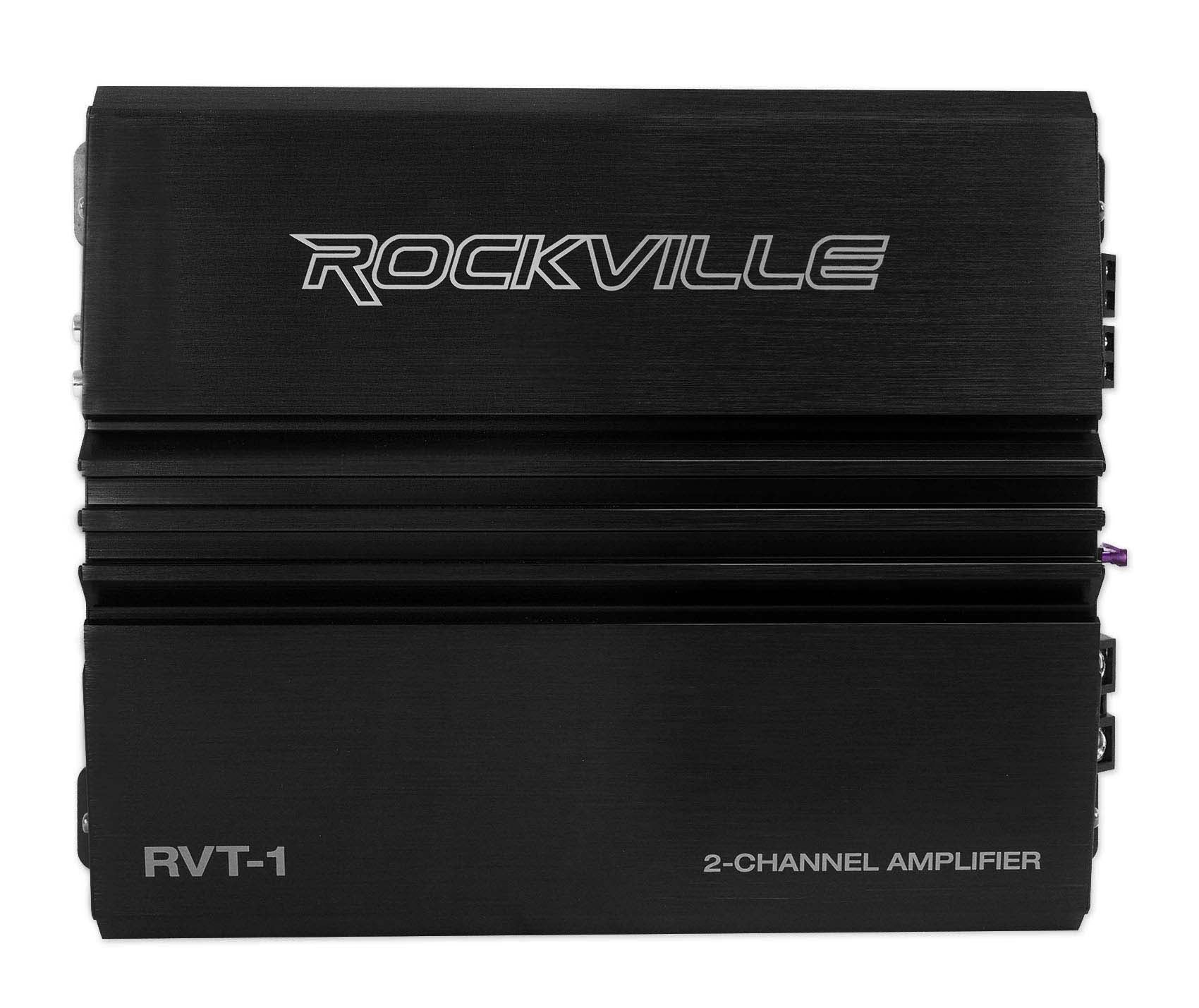

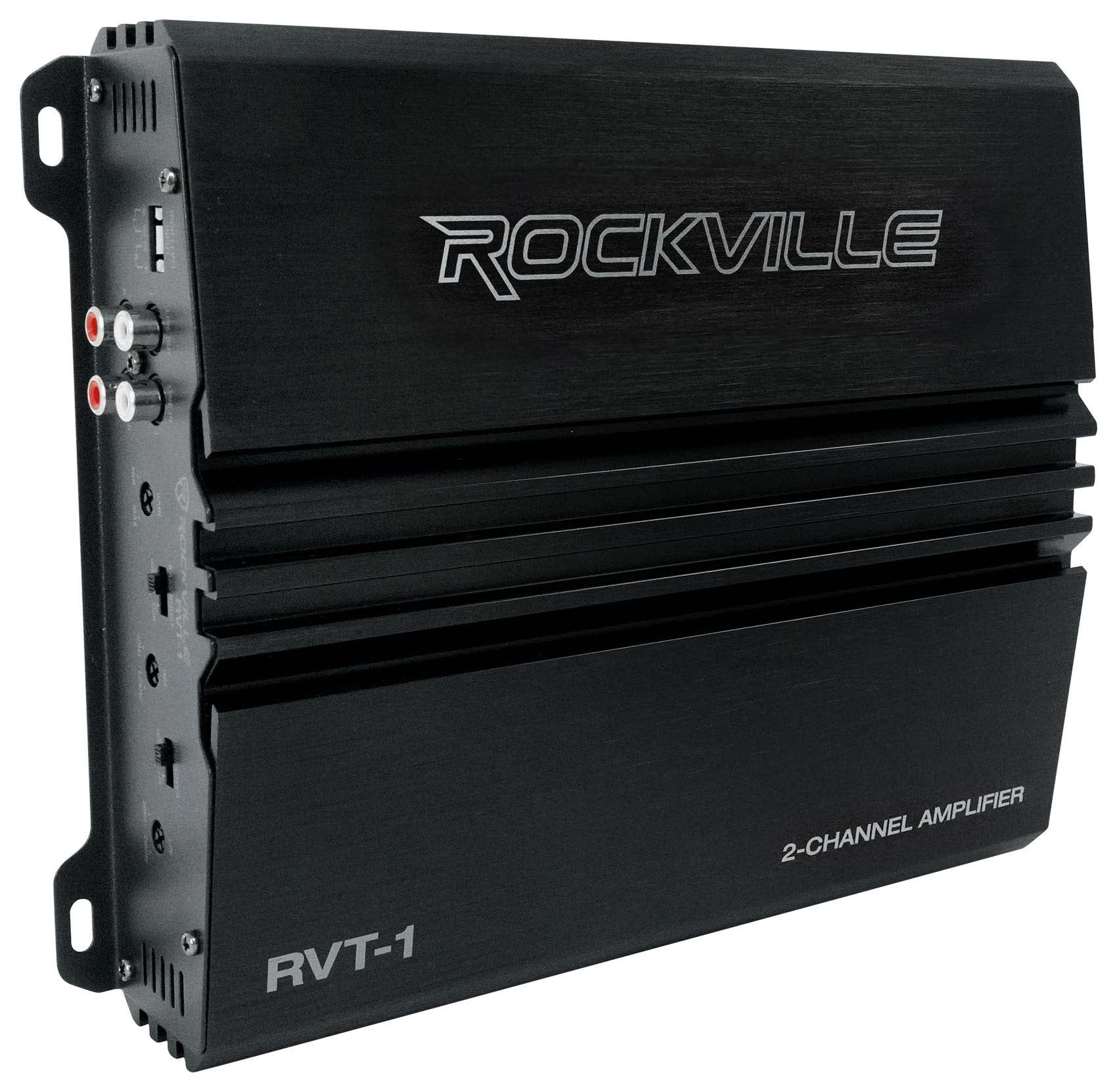

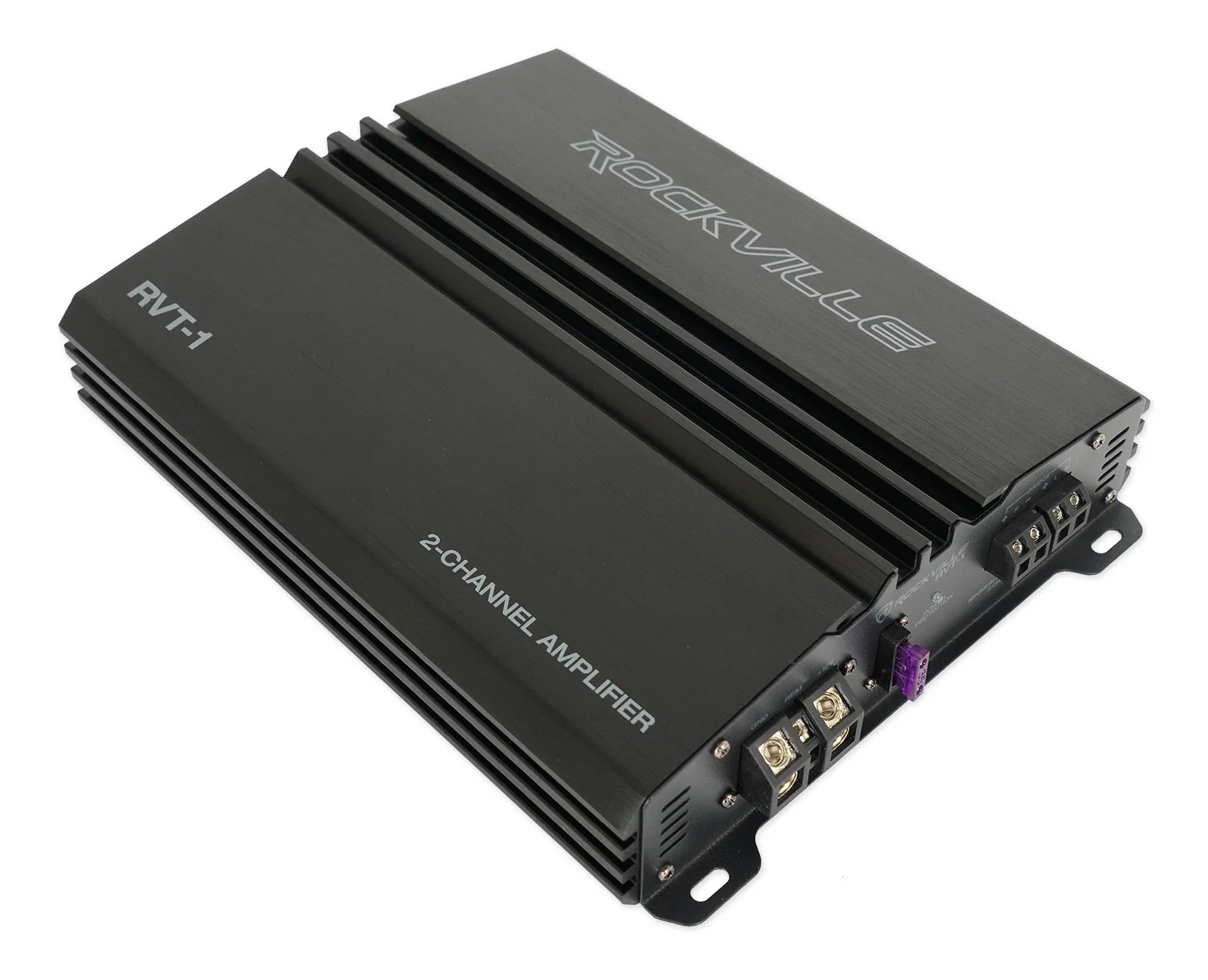

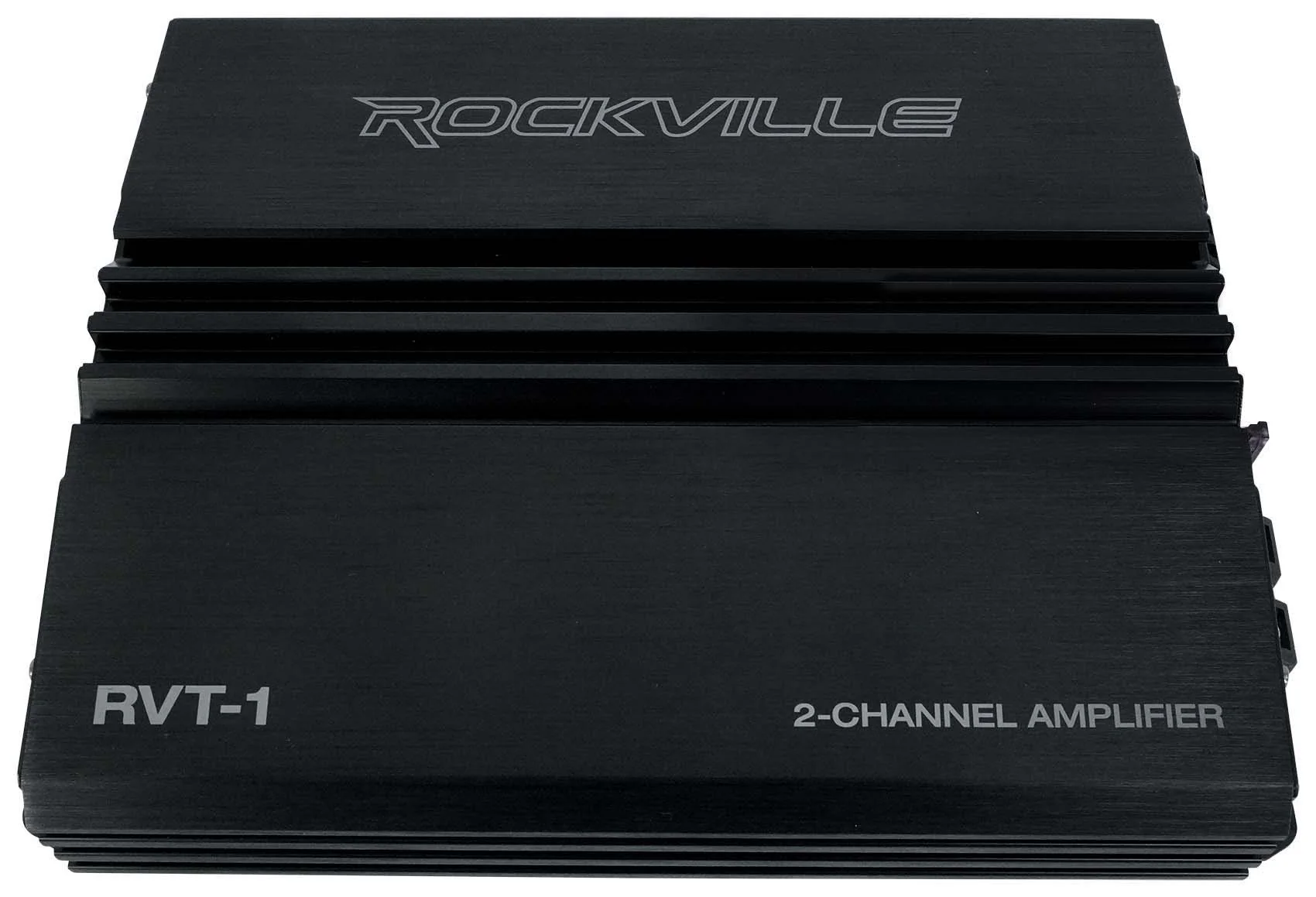

• Rockville RVT-1 1000w Peak/250w Dyno-Certified RMS 2 Channel Car Amplifier Stereo Amp
• 2 Ohm: 125 Watts x 2 Channel <1% THD+N
• 4 Ohm: 95 Watts x 2 Channel <1% THD+N
• 4 Ohms bridged: 250 Watts x 1 Channel <1% THD+N
• High-Speed MOSFET Power Supply
• Fully Adjustable 6dB / Octave Crossover with Differential Circuitry
• Low Pass Filter: 50Hz - 200Hz
• High Pass Filter: 50Hz-1.2KHz
• Full IC-Controlled Protection Circuitry
• Fully Adjustable 12dB Bass Equalizer
• Mute and Delay Soft Start System
• Status Mode LED Indicator
• THD at Rated Power: <1%
• S/N Ratio: >90dB
• Under Voltage Protection at 9V
• Over Voltage Protection at 16V
• Frequency Response: 10Hz - 20KHz
• Damping Factor: >150 @ 100Hz
• Fuse: 35A x 1
• Dimensions: (L x W x H) 11" x 8.5" x 2.24"
• Weight: 5.3 lbs
