Features:

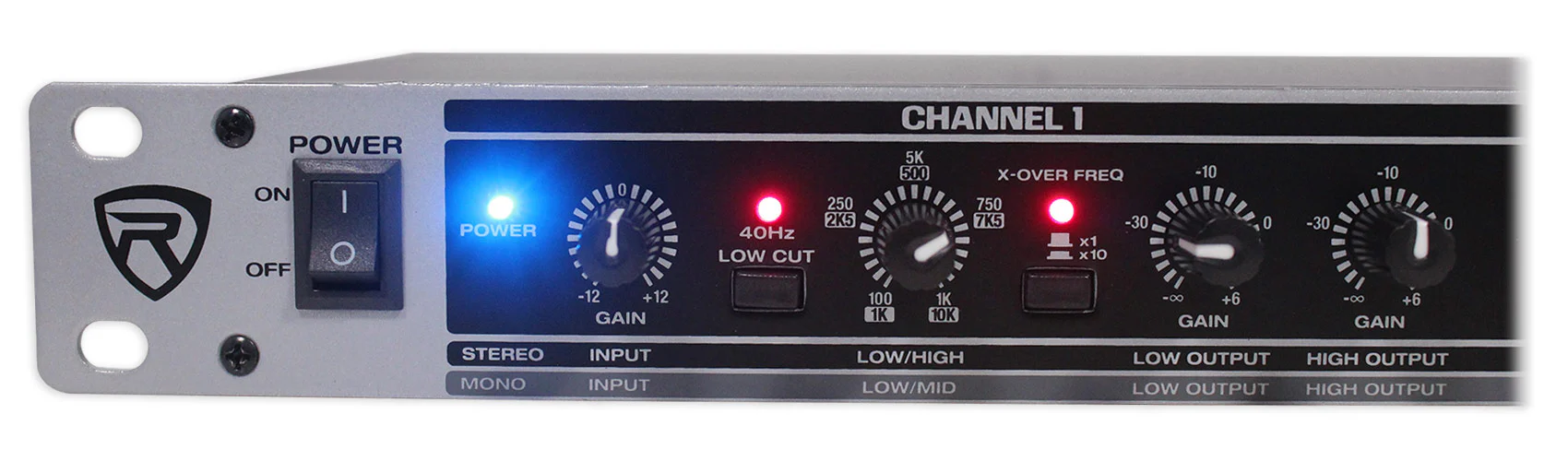

• Rockville RX230 2-way Stereo / 3-way Mono rack mountable crossover

• Ability to mix 2 channels output

• 24dB/Octave filters

• Mute switches

• Channel Gain Control: 0 to +12 dB

• Low Frequency Level Control: -8 to +6 dB

• High Frequency Level Control: -8 to +6 dB

• Low Frequency to High Frequency crossover: 100Hz to 1 Khz x10 range: Changes •
• Low Frequency to Mid Frequency from (100 Hz to 1 kHz) to (1kHz to 10 kHz)

• Switchable 2-way stereo or 3-way mono operation

• Subwoofer out

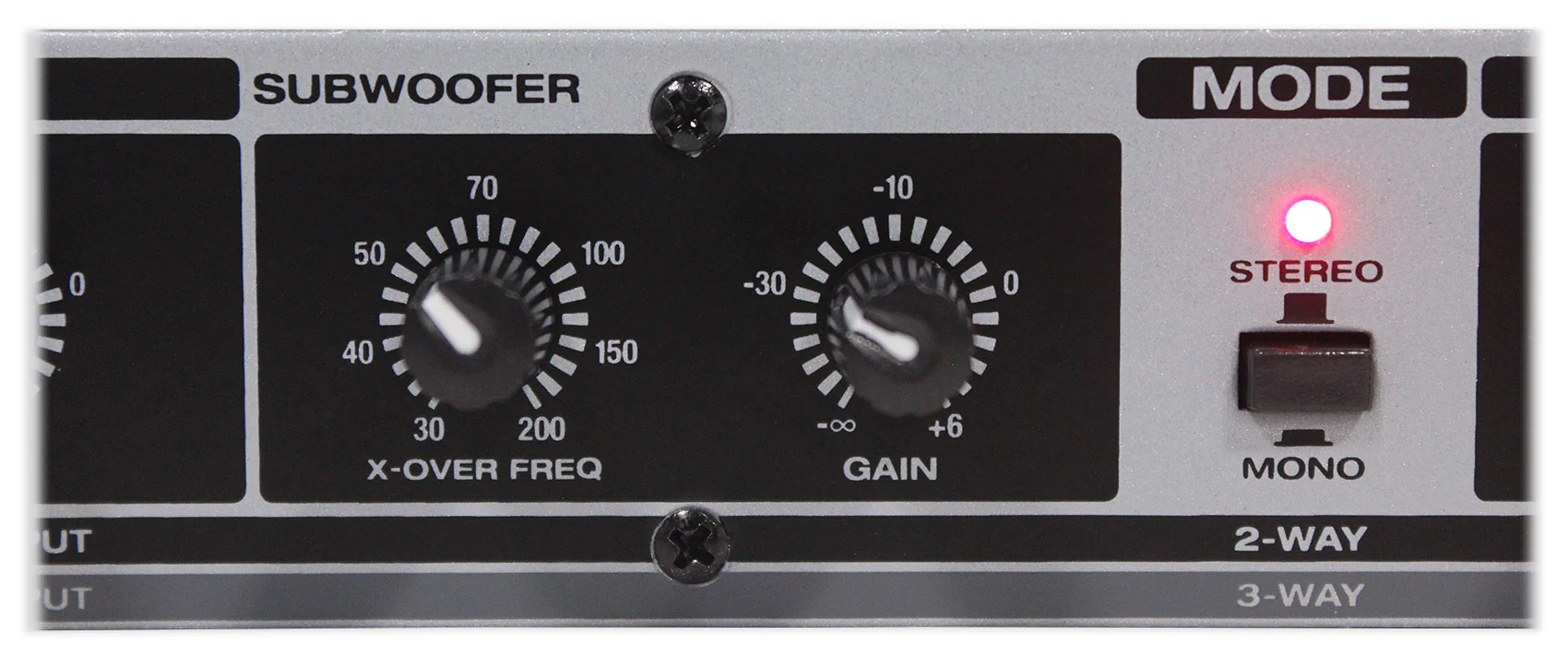

• Subwoofer X-Over Freq ( 30Hz – 200Hz ) adjustable

• Subwoofer Gain -6 to +6 dB

Specifications:

• Each output is -3 dB at the selected crossover frequency value. Outputs are essentially flat within their relative passbands.

• Distortion: Less than 0.02% THD @ +4 dBu,@ 1 kHz

• Hum and Noise: Crossover controls set @ 1 kHz, all level controls set at 0 dB; 22 Hz to 22 kHz, unweighted gain @ 0dB(ref +4dBu) - 90dB

• Low Frequency Output: -86 dBu below 80 dB

• High Frequency Output: -84 dBu below -78 dB

• Maximum Input Level: +14 dBu, (channel gain @ 0 dB input level controls set at 0 dB) +22 dBu

• Maximum Output Level: +22 dBu, unbalanced +28 dBu, balanced

• Input Impedance: 10k ohms unbalanced

• Dimensions: 19 x 4.85 x 1.8 inches

• Gross weight: 4.18 Lbs

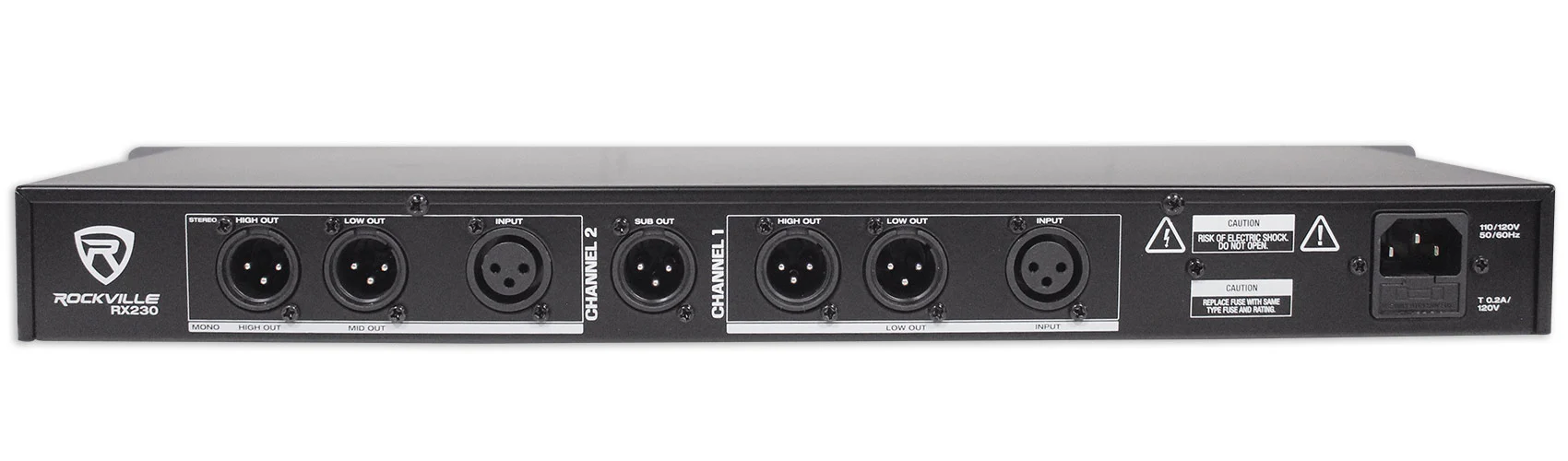

• Connectors:

• Inputs: XLR Balanced

• Outputs: XLR Balanced

• Power Requirements: 120V AC, 50/60 Hz, 20 watts

• 110-120V voltage
