Video of X8C:



What's In The Box:

• (2) 8" Woofers
• (2) Tweeters
• (2) Top of the Line Audiophile Crossovers
• Pre-Installed Mounting Screws
• Mounting Screws and Hardware
• Speaker Wire
• Warranty Card
• Owner's Manual

Features:

• Pair Rockville X8C Competition 8" 1,000 Watt Component Car Audio Speakers and Titanium Tweeters
• (2) 8” Woofers for Mids and Bass
• (2) 2” Aluminum Tweeters with Titanium Diaphragms
• (2) Audiophile Crossovers (these are very expensive crossovers with a lot of copper coils in them for advanced sound filtering to give you the best sound quality)
• Peak Power Rating: 1000 Watts Per Pair/500 Watts Each
• CEA Compliant RMS Rating: 250 Watts Per Pair/125 Watts Each
• Paper Woofer Cone With Cloth Edge Gives Amazing Bass and Mids
• True Aluminum Bullet to give the woofer amazing sound
• Steel Stamped Basket
• Oversized 1.5” CCAW Voice Coil
• 13 oz. High Quality Ferrite Magnet Y35
• Cutout Diameter: 7.2” inches
• Impedance: 4 Ohms
• Tweeter Size: 3.86’' x 1.97” inches
• Cutout Diameter of Tweeter: 2.80”inches
• Audiophile 2-Way Crossover with 12db/Octave Roll-Off
• Crossover Has Tweeter Attenuation Adjustment of -3db, -6db
• Frequency Response: 40Hz – 20,000 Hz
• Sound Pressure Level: 90dB @ 1w/1m
• Titanium Diaphragm Tweeter with 1” Kapton Voice Coils - the most premium voice coils on the market
• This item uses CCAW voice coil windings which is the most expensive and best material for voice coil winding
• Pre-installed mounting screws included

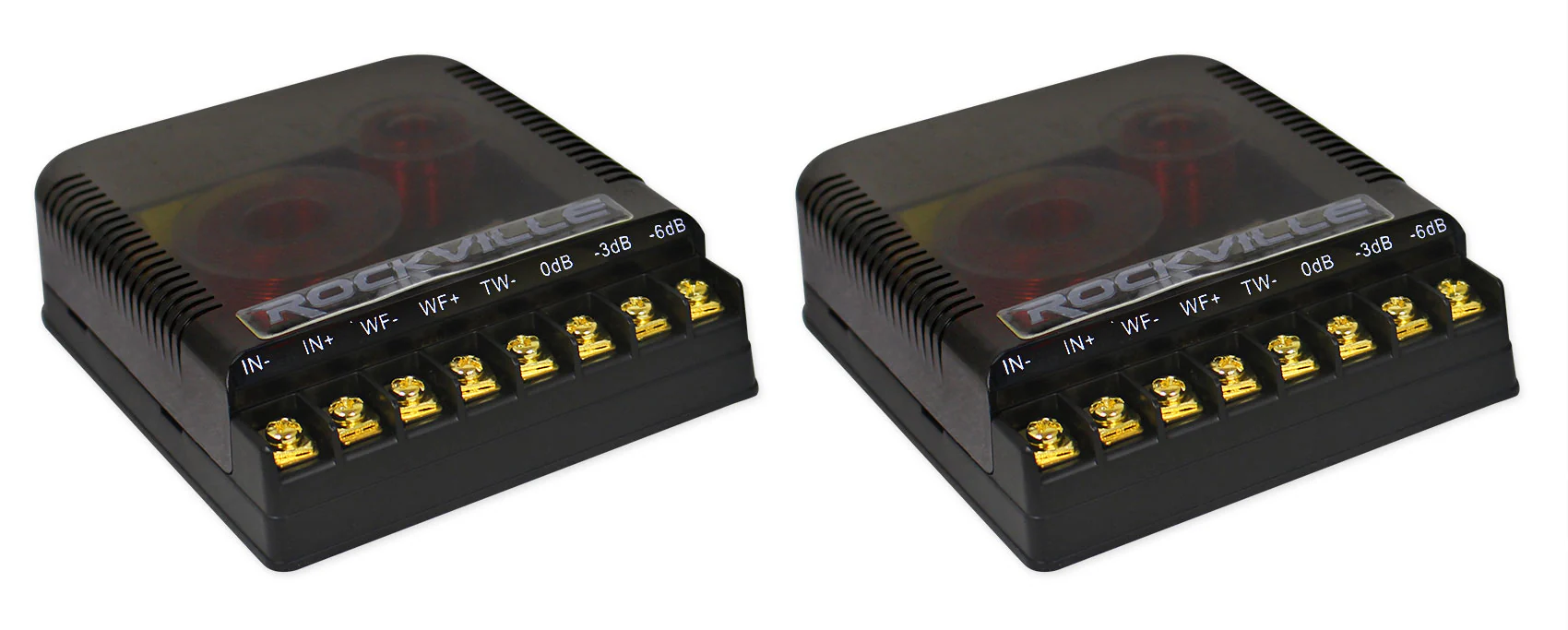

Features of Included Crossovers:

• 2-Way Passive Crossover Network
• One Pair of 4-Ohm Audiophile Grade Crossovers
• Gold Plated Screw Terminals
• Hingtat 100V Capacitor Modules (Best in Class)
• High Quality CCAW Coil Windings (Best in Class)
• High Grade Polymer Capacitors (Best in Class)
• Woofer Frequency: 20 Hz - 3.5 kHz
• Tweeter Frequency: 3.5 kHz - 20 kHz
• 12dB Per Octave Slope (4 Ohms)
• Poly-Glass Styling to See Internal Components
• Air Cooled Spools
• Input, Tweeter Output, Mid-Bass Woofer Output
• 0dB, -3db, -6dB Selectable Tweeter Attenuation
• Crossover Point: 2,800 Hz
• 4 Holes for Mounting
• Crossover Dimensions: 5" x 4.25" inches

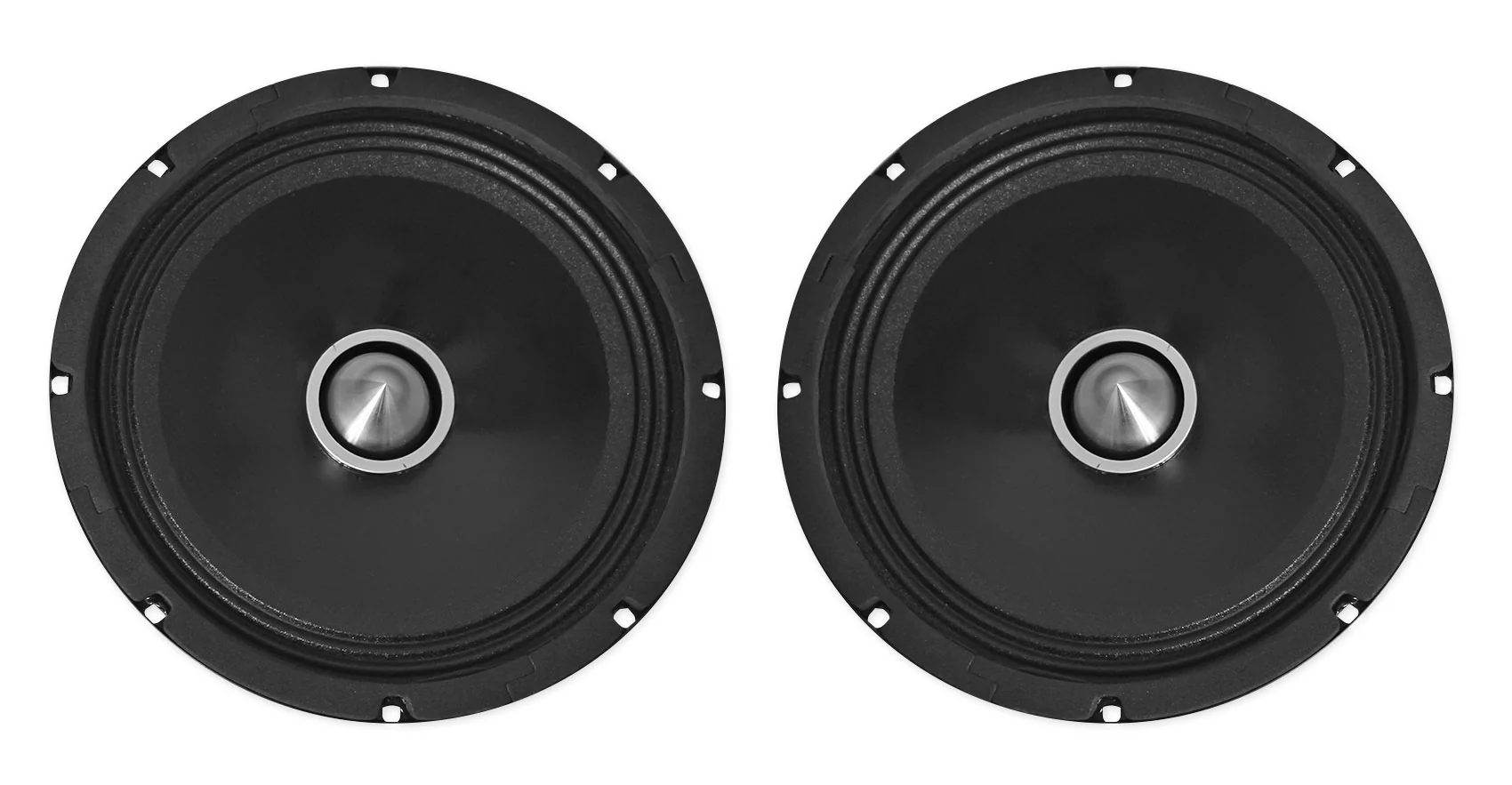

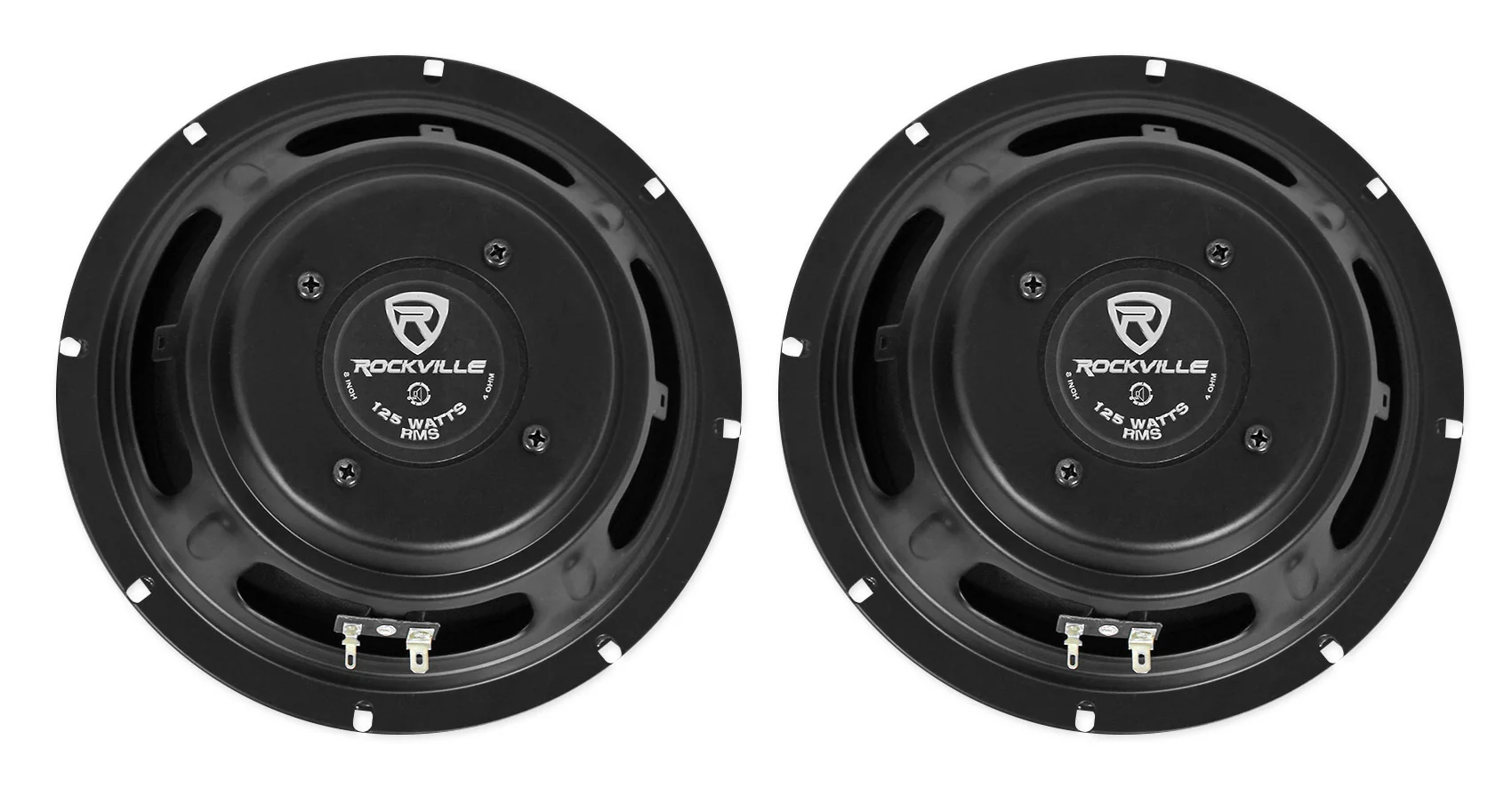

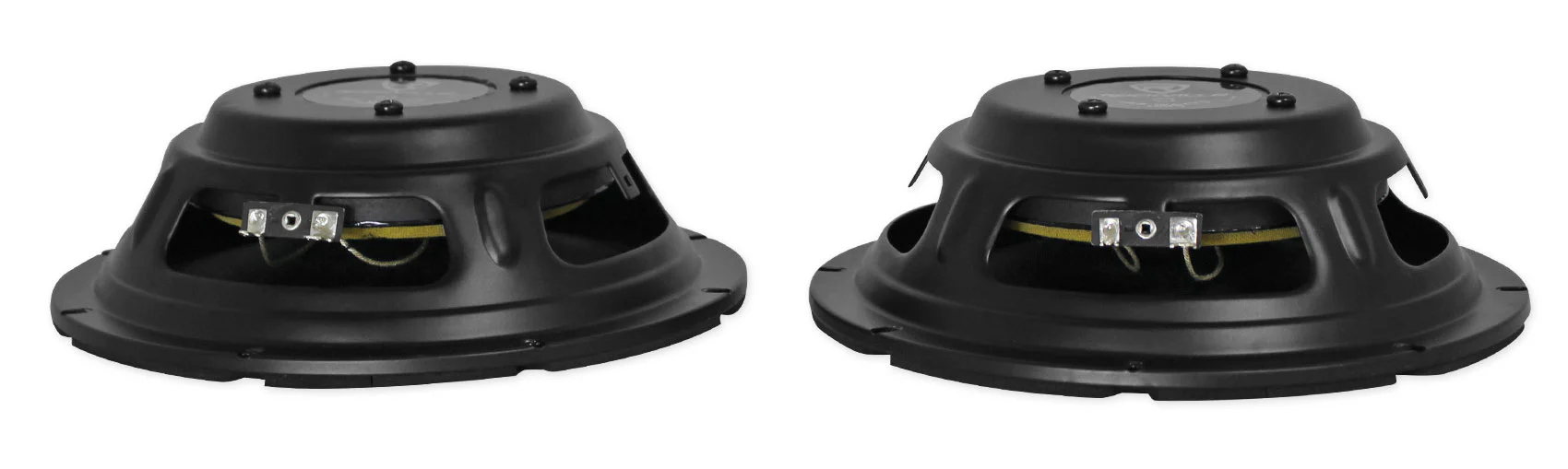

Features of Mid/Woofer:

• 8 Inch Mid/Bass Speakers Aluminum Bullet
• Design: Open-Basket Mid-Bass
• Sensitivity: 90dB
• Frequency Response: 80Hz-4KHz
• Impedance: 4 Ohms
• Reinforced Black Pulp Cone
• Linear Progressive Polyester-Cotton Composite Spider
• Aluminum Bullet Phase Plug High SPL Design
• High Tinsel Expanded Steel Basket
• Cloth surrounds reproduces very clean sound
• Zinc-Plated T-Yoke/Washers
• Super Slim Design Facilitates Door Installations
• 1.5” High Temperature CCAW Voice Coil
• 13oz. Magnet Y35
• Shallow Mounting Depth
• Top-Mount Depth: 2.32" inches
• Cutout Diameter: 7.2" inches
• Overall Diameter: 8.22” inches
• Mounting Hole Diameter: 8 holes- 0.196" x 0.315" inches

TS Parameters of Mid/Woofer:

• Fs: 79.5Hz
• Re: 3.6 Ohm
• Qes: 1.542
• Qts: 1.105
• Qms: 3.894
• Vas: 16.766K
• Cms: 208.815
• Bl: 4.729
• MMS: 19.158g
• Exm: 0.567

Features of Tweeter:

• 2” Titanium Compression Horn Tweeter
• 1” High Temperature Die Cast Kapton Voice Coil
• Extremely loud and clear highs with an amazing frequency response that can even play some mids
• Ferro Fluid Enhanced Voice Coil Cooling
• Shallow Mounting Depth
• 10oz. Magnet
• Includes Mounting Hardware
• Impedance: 4 Ohm
• Cutout Diameter: 2.8” inches
• Mounting Depth: 1.66” inches
• Frequency Response: 2 kHz - 20 kHz
• Sensitivity: 96dB @ 1w / 1m

TS Parameters of Tweeter:

• Fo: 2.041 kHz
• Re: 3.6 Ohm
• Qes: 11.995
• Qts: 2.74
• Qms: 3.551
• Krm: 11.224u Ohm
• Erm: 1.034
• Kxm: 1.531mH
• Exm: 0.592





Simple and Quick Tweeter Installation:

1. Choose mounting location, typically rear deck or door panel.
2. With the provided template cut a hole 2.8" in diameter make sure that you have a minimum of 1.66" mounting depth.
3. Using the included hardware, screw the tweeter into your mounting location.
